ELECTRIC PARKING BRAKE SYSTEM (w/ Advanced Park)
>>
DTC C1125-12: Electric Parking Brake Tension Sensor "B" Circuit Short to Battery [11/2021 - 10/2023]
>>

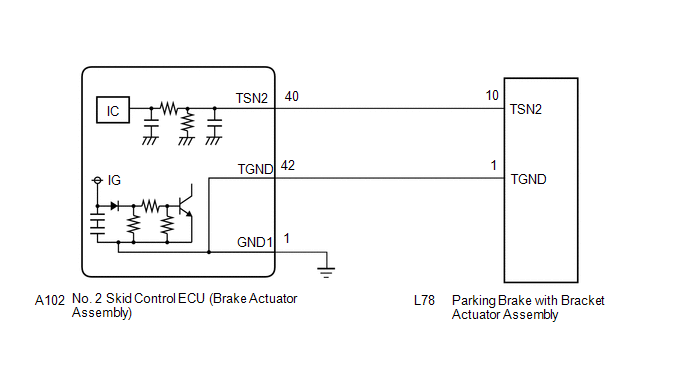

Wiring Diagram
DTC C1125-12: Electric Parking Brake Tension Sensor "B" Circuit Short to Battery [11/2021 - 10/2023]: Wiring Diagram
