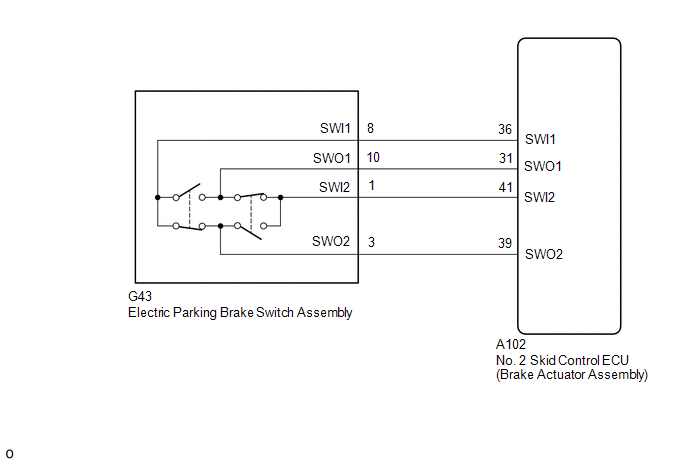

DTC C0609-62: Electric Parking Brake Switch Signal Compare Failure [11/2021 - 10/2023]: Wiring Diagram

GTY1086117

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
