Components [10/2020 - 11/2021]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LUGGAGE COMPARTMENT DOOR ASSIST GRIP | *2 | LUGGAGE COMPARTMENT DOOR COVER |
| *3 | LUGGAGE COMPARTMENT DOOR INSIDE HANDLE | *4 | LUGGAGE LOCK CONTROL CABLE PLATE |
| *5 | NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | *6 | SWITCH BEZEL |

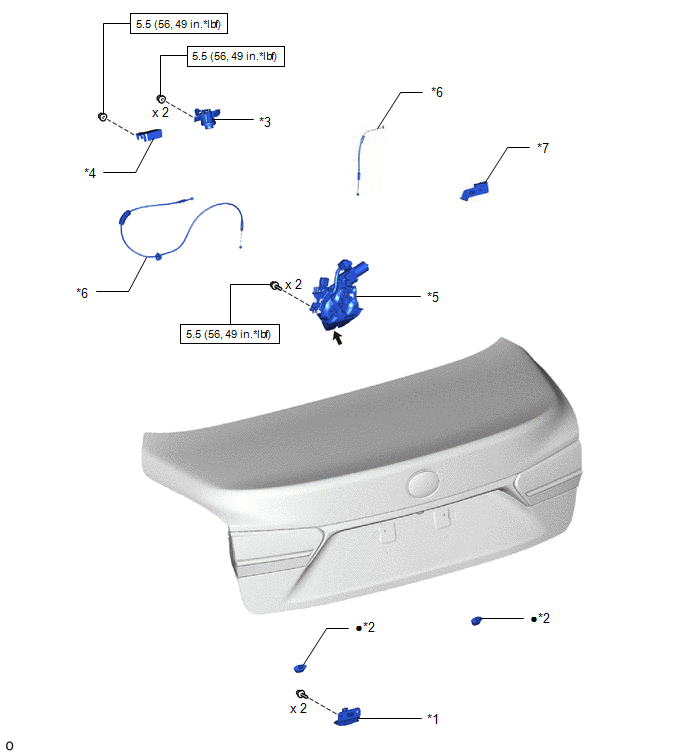

Fig 2: Luggage Compartment Door Replacement Components With Torque Specifications [10/2020 - 11/2021] (2 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | DOOR CONTROL SWITCH | *2 | LUGGAGE COMPARTMENT DOOR CUSHION |
| *3 | LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY | *4 | LUGGAGE COMPARTMENT KEY CYLINDER PROTECTOR |
| *5 | LUGGAGE DOOR CLOSER ASSEMBLY | *6 | LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY |
| *7 | LUGGAGE LOCK CONTROL CABLE CLAMP | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

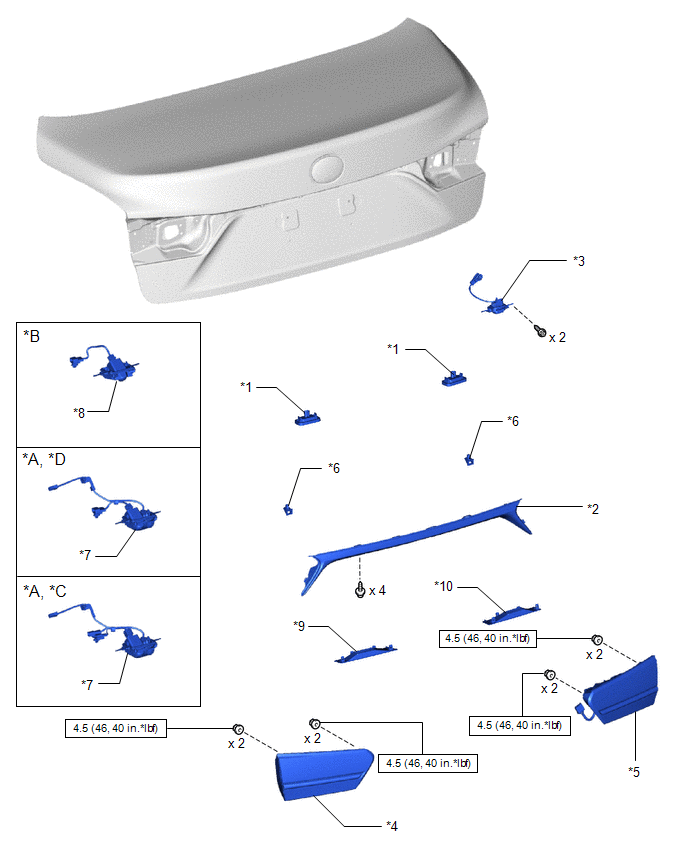

Fig 3: Luggage Compartment Door Replacement Components With Torque Specifications [10/2020 - 11/2021] (3 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Digital Inner Mirror | *B | w/o Digital Inner Mirror |
| *C | w/ Advanced Park | *D | w/o Advanced Park |
| *1 | LICENSE PLATE LIGHT ASSEMBLY | *2 | LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY |
| *3 | LUGGAGE ELECTRICAL KEY SWITCH | *4 | REAR LIGHT ASSEMBLY LH |
| *5 | REAR LIGHT ASSEMBLY RH | *6 | REAR LUGGAGE TRIM CLIP |
| *7 | TELEVISION CAMERA ASSEMBLY WITH INNER MIRROR CAMERA ASSEMBLY | *8 | TELEVISION CAMERA ASSEMBLY WITH WIRE |
| *9 | UPPER LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH LH | *10 | UPPER LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | INNER LOWER LUGGAGE COMPARTMENT TRIM COVER | *2 | LUGGAGE COMPARTMENT FLOOR MAT |
| *3 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY | *4 | LUGGAGE COMPARTMENT TRIM COVER LH |
| *5 | LUGGAGE COMPARTMENT TRIM COVER RH | *6 | TOOL BOX |
| Callout | Description | Callout | Description |
|---|---|---|---|

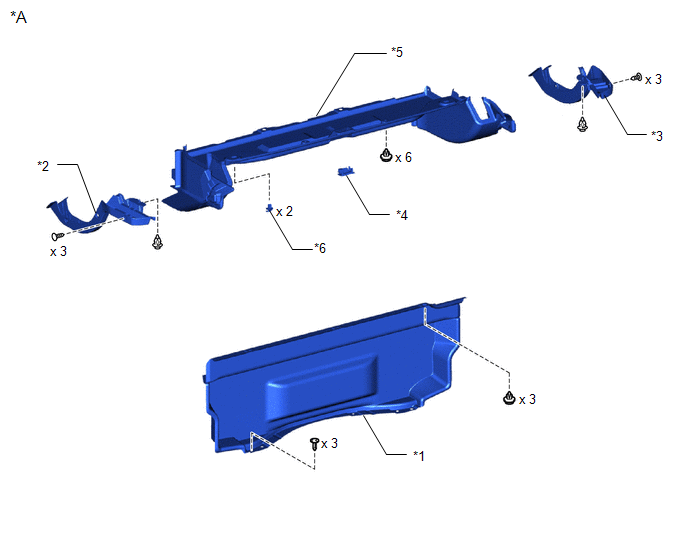

| *A | w/o Advanced Drive | - | - |
| *1 | FRONT LUGGAGE COMPARTMENT TRIM COVER | *2 | LUGGAGE COMPARTMENT DOOR HINGE COVER LH |
| *3 | LUGGAGE COMPARTMENT DOOR HINGE COVER RH | *4 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *5 | REAR LUGGAGE COMPARTMENT TRIM COVER | *6 | ROPE HOOK |
| Callout | Description | Callout | Description |
|---|---|---|---|

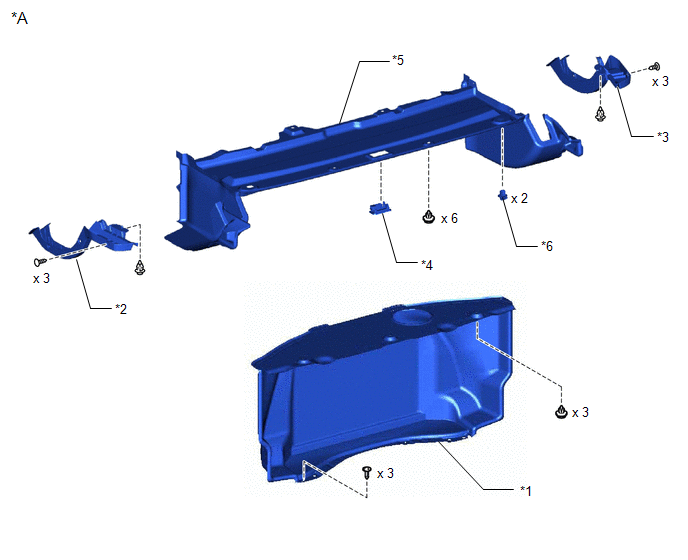

| *A | w/ Advanced Drive | - | - |
| *1 | FRONT LUGGAGE COMPARTMENT TRIM COVER | *2 | LUGGAGE COMPARTMENT DOOR HINGE COVER LH |
| *3 | LUGGAGE COMPARTMENT DOOR HINGE COVER RH | *4 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *5 | REAR LUGGAGE COMPARTMENT TRIM COVER | *6 | ROPE HOOK |
