Installation [09/2018 - 10/2020]: Procedure

WARNING: This page is about a different car, the 2020 Lexus LS 500, 2019 Lexus LS 500, and 2018 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    1. Attach the guide.

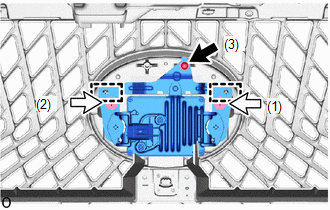

      GTY830353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Bolt
    2. Temporarily install the millimeter wave radar sensor assembly with the 2 bolts and screw.
    3. Tighten the 2 bolts and screw in the order shown in the illustration.

      Bolt

      Torque: 2.5 N.m (25 kgf/cm, 22 in.lbf)

  2. INSTALL FRONT BUMPER ASSEMBLY
    1. except Sport Package:

      Refer to INSTALLATION [12/2017 - 10/2020]

    2. for Sport Package:

      Refer to INSTALLATION [12/2017 - 10/2020]

  3. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    1. When the millimeter wave radar sensor assembly is replaced, adjust the millimeter wave radar sensor assembly.

      Refer to ADJUSTMENT [09/2018 - 10/2020]
