Removal [12/2017 - 09/2018]: Procedure

  1. PRECAUTION (w/ Hands Free Power Trunk Lid)
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [12/2017 - 10/2020]

    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [12/2017 - 10/2020]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (w/ Hands Free Power Trunk Lid)

    Refer to PROCEDURE - Step 24

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Hands Free Power Trunk Lid)

    Refer to PROCEDURE - Step 3

    WARNING:
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2017 - 09/2018]

  4. REMOVE REAR COMBINATION LIGHT COVER LH
    1. Put protective tape around the rear combination light cover LH.
      GTY786593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Insert moulding remover A at the position shown in the illustration and detach the claw.
      GTY817104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Detach the claw and remove the rear combination light cover LH.
      GTY777640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE REAR COMBINATION LIGHT COVER RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE REAR BUMPER ASSEMBLY
    1. Remove the 3 clips.
      GTY827062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH and LH side.

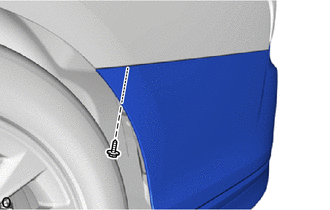

    2. Remove the screw.
      GTY827061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH and LH side.

    3. Remove the 8 clips.
      GTY797144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 screws.
      GTY797141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Put protective tape around the rear bumper assembly.
      GTY832054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    6. Detach the claw as shown in the illustration.
      GTY804550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction

      HINT:

      Use the same procedure for the RH and LH side.

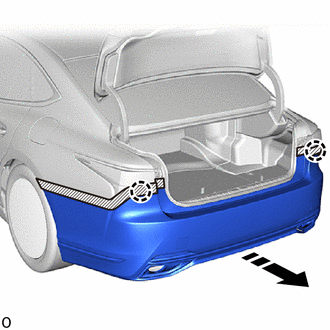

    7. Detach the claw and remove the rear bumper assembly as shown in the illustration.
      GTY801417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    8. w/ Parking Support Brake System:
      1. Disconnect the connector.
