Removal [12/2017 - ]: Procedure

  1. REMOVE FRONT DOOR TRIM UPPER COVER LH

    Refer to PROCEDURE - Step 4 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 4 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 4 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 4 [10/2023 - ]

  2. REMOVE FRONT DOOR ARMREST COVER LH

    Refer to PROCEDURE - Step 5 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 5 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 5 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 5 [10/2023 - ]

  3. REMOVE FRONT DOOR NO. 2 ARMREST COVER LH

    Refer to PROCEDURE - Step 6 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 6 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 6 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 6 [10/2023 - ]

  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 7 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 7 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 7 [10/2023 - ]

  5. REMOVE FRONT DOOR TRIM COVER LH

    Refer to PROCEDURE - Step 17 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 17 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 17 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 17 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 17 [10/2023 - ]

  6. REMOVE UPPER DOOR FRAME GARNISH LH

    Refer to PROCEDURE - Step 18 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 18 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 18 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 18 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 18 [10/2023 - ]

  7. REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP LH

    Refer to PROCEDURE - Step 19 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 19 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 19 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 19 [10/2023 - ]

  8. REMOVE FRONT DOOR VENT SEAL LH

    Refer to PROCEDURE - Step 20 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 20 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 20 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 20 [10/2023 - ]

  9. REMOVE FRONT DOOR NO. 3 WEATHERSTRIP LH

    Refer to PROCEDURE - Step 29 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 29 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 29 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 29 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 29 [10/2023 - ]

  10. REMOVE FRONT DOOR NO. 2 WEATHERSTRIP LH

    Refer to PROCEDURE - Step 30 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 30 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 30 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 30 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 30 [10/2023 - ]

  11. REMOVE FRONT DOOR BELT MOULDING LH

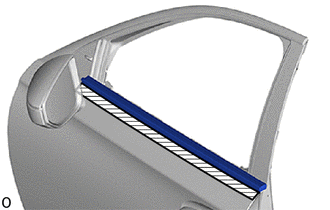

    1. GTY780279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      Put protective tape around the front door belt moulding LH.

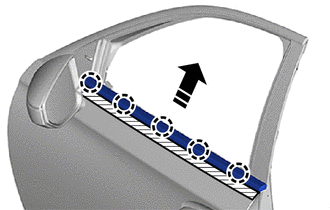

    2. GTY827409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Detach the claw and remove the front door belt moulding LH as shown in the illustration.
