Removal [10/2020 - 10/2023]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY
    1. for Sport Package:

      Refer to REMOVAL [10/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023]

    2. except Sport Package:

      Refer to REMOVAL [10/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023]

  2. REMOVE NO. 4 ENGINE ROOM WIRE
    1. for Sport Package:

      Refer to PROCEDURE - Step 10 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 10 [11/2021 - 10/2023]

    2. except Sport Package:

      Refer to PROCEDURE - Step 10 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 10 [11/2021 - 10/2023]

  3. REMOVE FRONT CORNER ULTRASONIC SENSOR
    1. Detach the claw and remove the front corner ultrasonic sensor.
      NOTE:

      Before removing the sensor, make sure to mark the sensor and front bumper assembly so that each sensor can be returned to its original position.

      1. except Sport Package:
        GTY967584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. for Sport Package:

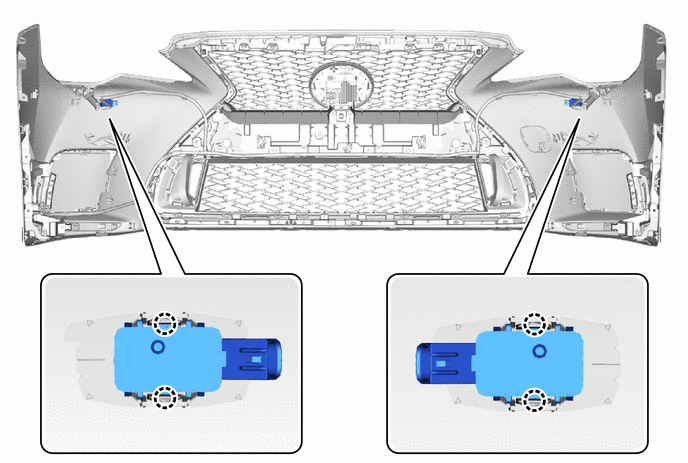

        GTY967612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER

    HINT:

    When removing the front corner ultrasonic sensor retainer, heat the front bumper assembly and front corner ultrasonic sensor retainer using a heat light.

    1. Heat the front bumper assembly and front corner ultrasonic sensor retainer using a heat light.
      WARNING:
      GTY812853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Heat Light
      • Do not touch the heat light and heated parts.
      • Touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.

      Standard

      Item Temperature
      Front Bumper Assembly 20 to 30°C (68 to 86°F)
      Front Corner Ultrasonic Sensor Retainer
    2. Remove the front corner ultrasonic sensor retainer.
      1. except Sport Package:
        GTY966377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. for Sport Package:

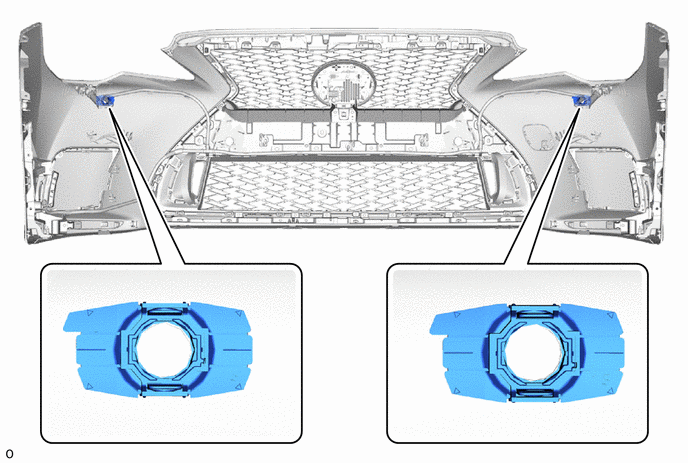

        GTY966378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT CENTER ULTRASONIC SENSOR
    1. Detach the claw and remove the front center ultrasonic sensor.
      NOTE:

      Before removing the sensor, make sure to mark the sensor and front bumper assembly so that each sensor can be returned to its original position.

      1. except Sport Package:

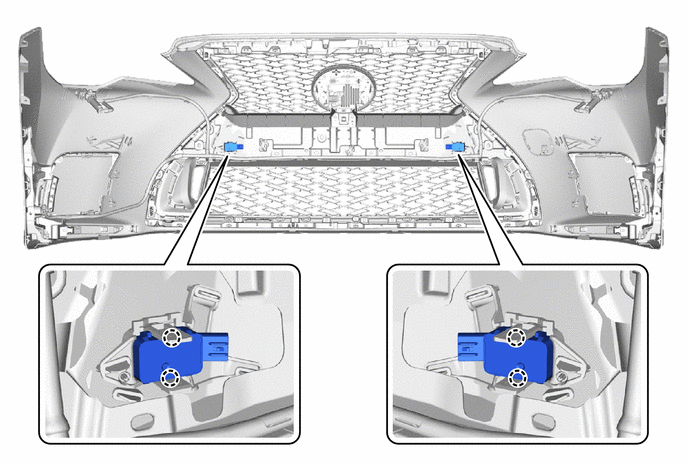

        GTY966429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. for Sport Package:
        GTY967576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT ULTRASONIC SENSOR CLIP

    HINT:

    When removing the front ultrasonic sensor clip, heat the front bumper assembly and front ultrasonic sensor clip using a heat light.

    1. w/ Headlight Cleaner System:
      GTY966866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the washer hose clamp.

        HINT:

        Use the same procedure for the other side.

    2. Heat the front bumper assembly and front ultrasonic sensor clip using a heat light.
      WARNING:
      • Do not touch the heat light and heated parts.
      • Touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.
      GTY835518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Heat Light

      Standard

      Item Temperature
      Front Bumper Assembly 20 to 30°C (68 to 86°F)
      Front Ultrasonic Sensor Clip
    3. Remove the front ultrasonic sensor clip.
      1. except Sport Package:
        GTY966354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. for Sport Package:

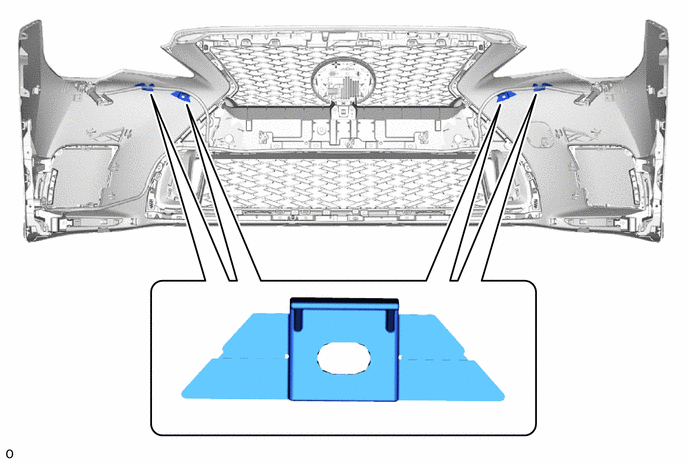

        GTY966355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE ULTRASONIC SENSOR CUSHION SET

    HINT:

    Only perform this procedure when removing and installing the ultrasonic sensor cushion set.

    1. Remove the ultrasonic sensor cushion set as shown in the illustration.

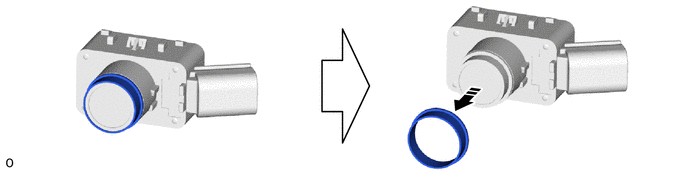

      GTY1085145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
