Removal [12/2017 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY
    1. except Sport Package:

      Refer to REMOVAL [12/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020] , or refer to REMOVAL [10/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    2. for Sport Package:

      Refer to REMOVAL [12/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020] , or refer to REMOVAL [10/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

  2. REMOVE FRONT TELEVISION CAMERA ASSEMBLY
    1. except Sport Package:
      1. GTY833953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Disconnect the connector and detach the clamp.

      2. GTY805647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Remove the 2 screws.

      3. Detach the guide and remove the front television camera assembly.
        GTY831455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
    2. for Sport Package:

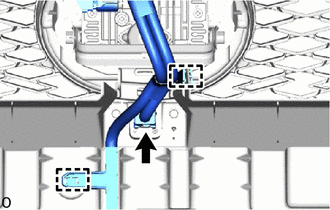

      1. Disconnect the connector and detach the clamp.
        GTY805654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

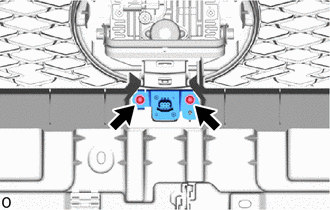

      2. Remove the 2 screws.
        GTY833950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

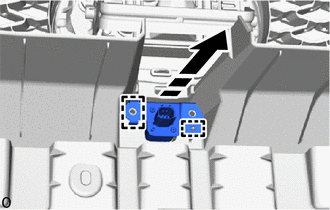

      3. GTY816852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction

        Detach the guide and remove the front television camera assembly.
