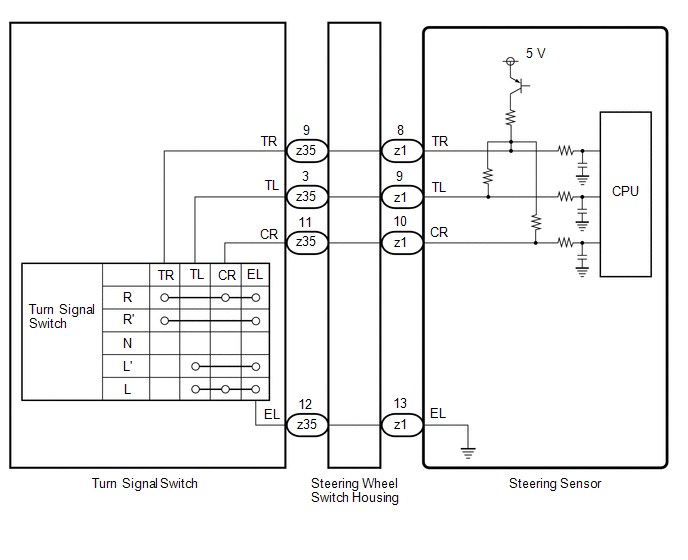

Turn Signal Switch Circuit [12/2017 - 10/2023]: Wiring Diagram

GTY805328

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
