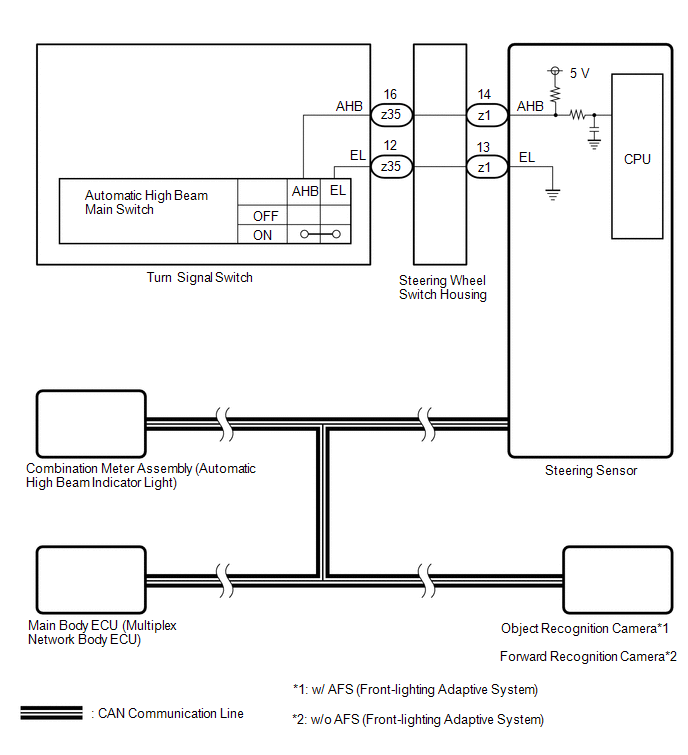

Automatic High Beam System does not Operate or Operation Indicator does not Illuminate [12/2017 - 09/2018]: Wiring Diagram

GTY830431

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
