Removal [10/2023 - ]: Procedure

  1. REMOVE RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 1

  2. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 2

  3. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 3

  4. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    NOTE:

    Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.

    1. Disconnect the connector.

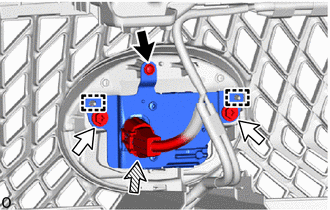

      GTY1236790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Bolt
      Connector
    2. Remove the 2 bolts and screw.
    3. Detach the guide and remove the millimeter wave radar sensor assembly.
