Installation [03/2017 - 05/2023]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FRONT BUMPER COVER

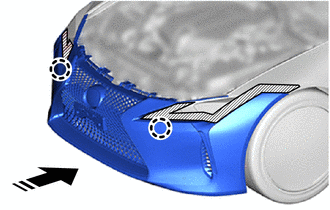

    1. Apply protective tape around the front bumper cover.
      GTY800430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      Protective Tape
    2. Attach the claws to temporarily install the front bumper cover.
      NOTE:

      Do not damage the front bumper cover.

    3. Fold back a part of edge of the front fender liner LH, connect the connector of the front turn signal light assembly LH.
      NOTE:

      When folding back the edge of the front fender liner LH, do not pull too hard.

      GTY799976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

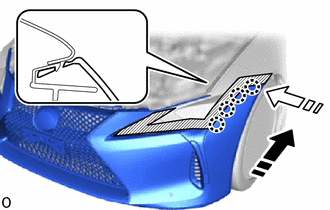

    4. Attach the claws to install the front bumper cover as shown in the illustration.
      GTY827681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)

      HINT:

      Use the same procedure for the RH side and LH side.

    5. Remove the protective tape.
    6. Connect the connector of the millimeter wave radar sensor assembly.
      GTY799977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

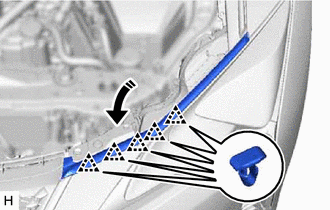

    7. Attach the clips and install the radiator grille protector.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY782653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    8. Install the 2 clips and 4 bolts.
      GTY787872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

    9. Install the 8 screws.
      GTY829184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

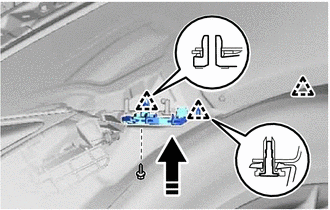

    10. Install the front side bumper retainer.
      GTY802759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

      1. Attach the clips to install the front side bumper retainer LH as shown in the illustration.
      2. Install the screw.
      3. Install the clip to the front fender liner.

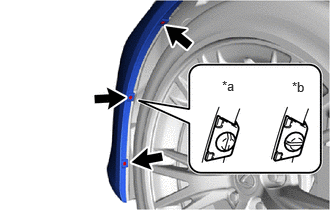

    11. Install the front bumper cover with the 3 pin hold clips.
      GTY781669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Correct
      *b Incorrect
      NOTE:
      • Insert the pin hold clip with the slot aligned vertically.
      • Do not rotate the pin hold clip after inserting it.

      HINT:

      Use the same procedure for the RH side and LH side.

  2. INSTALL LOWER RADIATOR AIR DEFLECTOR
    GTY776814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the guide.
    2. Install the lower radiator air deflector with the 5 clips.
  3. INSTALL RADIATOR SUPPORT TO FRAME SEAL LH
    1. Attach the guides and claws.
      GTY776813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the radiator support to frame seal LH with the 6 clips.
  4. INSTALL RADIATOR SUPPORT TO FRAME SEAL RH
    1. Attach the guides and claws.
      GTY776812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the radiator support to frame seal RH with the 6 clips.
  5. PERFORM INITIALIZATION
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]

  6. PERFORM DIAGNOSTIC SYSTEM CHECK
    1. When removing and installing the No. 2 front bumper mounting bracket:

      Refer to DTC CHECK / CLEAR [03/2017 - 04/2020] , or refer to DTC CHECK / CLEAR [04/2020 - ]

  7. CHECK SRS WARNING LIGHT
    1. When removing and installing the No. 2 front bumper mounting bracket:

      Refer to OPERATION CHECK [03/2017 - 04/2020] , or refer to OPERATION CHECK [04/2020 - ]

  8. HEADLIGHT AIMING
    1. When removing and installing the headlight assembly:

      Refer to ADJUSTMENT [03/2017 - ]
