Removal [03/2017 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - 09/2023] , or refer to PROCEDURE - Step 2 [09/2023 - ]
- REMOVE RADIATOR SUPPORT TO FRAME SEAL RH
Refer to PROCEDURE - Step 1 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 1 [05/2023 - ]
- REMOVE RADIATOR SUPPORT TO FRAME SEAL LH
Refer to PROCEDURE - Step 2 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]
- REMOVE LOWER RADIATOR AIR DEFLECTOR
Refer to PROCEDURE - Step 3 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]
- DRAIN ENGINE COOLANT
Refer to REPLACEMENT [03/2017 - 09/2023] , or refer to REPLACEMENT [09/2023 - ]

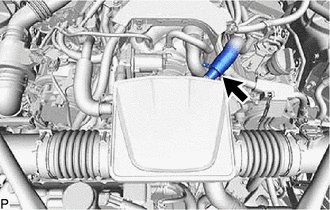

- DISCONNECT NO. 2 PCV HOSE

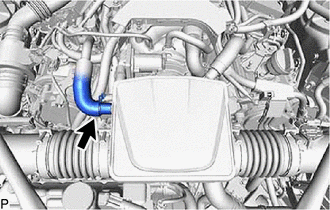

- DISCONNECT NO. 3 PCV HOSE

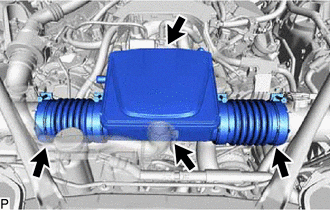

- REMOVE AIR CLEANER HOSE ASSEMBLY
- REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

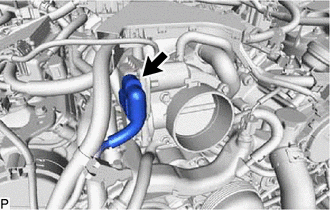

- Disconnect the throttle body with motor assembly connector.

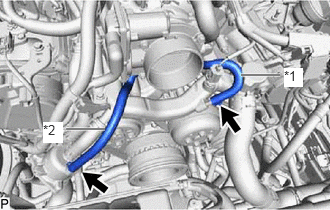

- Slide the clip and disconnect the No. 4 water by-pass hose from the front water by-pass joint.
*1 No. 4 Water By-pass Hose *2 No. 5 Water By-pass Hose - Slide the clip and disconnect the No. 5 water by-pass hose from the water inlet housing.

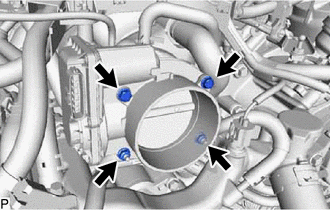

- Remove the 2 bolts and 2 nuts from the throttle body with motor assembly.
- Using an E6 "TORX" socket wrench, remove the 2 stud bolts, throttle body with motor assembly and gasket from the intake air surge tank assembly.NOTE:
If the throttle body with motor assembly has been struck or dropped, replace it.
- Slide the 2 clips, remove the No. 4 water by-pass hose and No. 5 water by-pass hose from the throttle body with motor assembly.
- Disconnect the throttle body with motor assembly connector.
