Installation [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HEATED OXYGEN SENSOR (for Bank 2)

    HINT:

    Perform "Inspection After Repair" after replacing a heated oxygen sensor.

    Refer to INITIALIZATION [03/2017 - ]

    1. Using SST, install the heated oxygen sensor to the front exhaust pipe assembly.

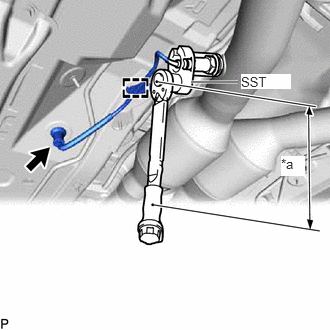

      GTY822562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
      • SST: 09224-00012

      Specified tightening torque

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [03/2017 - 05/2023] , or refer to PRECAUTION [05/2023 - ]

      • When using SST (fulcrum length of 30 mm (1.181 in.)) + torque wrench (fulcrum length of 180 mm (7.087 in.)):37.7 N*m (384 kgf*cm, 28 ft.*lbf)
    2. Attach the heated oxygen sensor grommet and clamp to the vehicle body.
  2. INSTALL HEATED OXYGEN SENSOR (for Bank 1)

    HINT:

    Perform "Inspection After Repair" after replacing a heated oxygen sensor.

    Refer to INITIALIZATION [03/2017 - ]

    1. Using SST, install the heated oxygen sensor to the front exhaust pipe assembly.

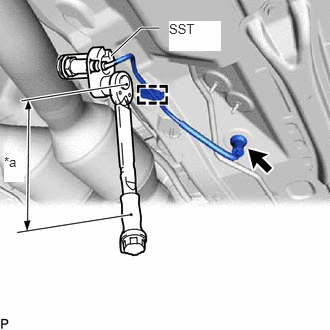

      GTY818970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
      • SST: 09224-00012

      Specified tightening torque

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [03/2017 - 05/2023] , or refer to PRECAUTION [05/2023 - ]

      • When using SST (fulcrum length of 30 mm (1.181 in.)) + torque wrench (fulcrum length of 180 mm (7.087 in.)):37.7 N*m (384 kgf*cm, 28 ft.*lbf)
    2. Attach the heated oxygen sensor grommet and clamp to the vehicle body.
  3. CONNECT HEATED OXYGEN SENSOR CONNECTOR
    1. Connect the 2 heated oxygen sensor connectors.
    2. Install the floor carpet to the original position.
  4. INSTALL FRONT SEAT ASSEMBLY

    Refer to INSTALLATION [03/2017 - 04/2020] , or refer to INSTALLATION [04/2020 - 05/2023] , or refer to INSTALLATION [05/2023 - ]

  5. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 19 [03/2017 - 09/2023] , or refer to PROCEDURE - Step 21 [09/2023 - ]

  6. INSTALL FRONT FLOOR COVER RH

    Refer to PROCEDURE - Step 13 [03/2017 - 09/2023] , or refer to PROCEDURE - Step 15 [09/2023 - ]

  7. INSTALL FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 14 [03/2017 - 09/2023] , or refer to PROCEDURE - Step 16 [09/2023 - ]

  8. INSTALL FRONT FENDER SEAL RH

    Refer to PROCEDURE - Step 15 [03/2017 - 09/2023] , or refer to PROCEDURE - Step 17 [09/2023 - ]

  9. INSTALL FRONT FENDER SEAL LH

    Refer to PROCEDURE - Step 16 [03/2017 - 09/2023] , or refer to PROCEDURE - Step 18 [09/2023 - ]

  10. INSTALL REAR FLOOR SIDE MEMBER COVER RH

    Refer to PROCEDURE - Step 17 [03/2017 - 09/2023] , or refer to PROCEDURE - Step 19 [09/2023 - ]

  11. INSTALL REAR FLOOR SIDE MEMBER COVER LH

    Refer to PROCEDURE - Step 18 [03/2017 - 09/2023] , or refer to PROCEDURE - Step 20 [09/2023 - ]
