Installation [03/2017 - 05/2023]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL INJECTOR DRIVER
    NOTE:
    • Be careful not to drop or strike the injector driver.
    • The injector driver is grounded at the 4 bolts and 2 nuts. To ensure that it is grounded, clean the installation surfaces of the injector driver and engine before installing the injector driver.
    1. Temporarily install the No. 1 injector driver and No. 2 injector driver with the 4 bolts and 2 nuts.
    2. Tighten the 4 bolts and 2 nuts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    3. Connect the 2 injector driver connectors.

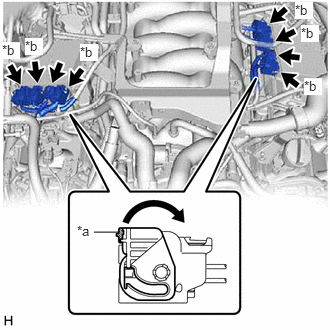

      GTY624307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Lever
    4. Connect the 6 connectors (with lock) to the 2 injector drivers and move the lock lever to engage the lock of each connector (with lock) as shown in the illustration.
      NOTE:

      Securely connect the connectors (with lock) to the injector driver and engage the lock.

  2. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 138 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 138 [06/2019 - 05/2023]

  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]
