Installation [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 1 SPEAKER ASSEMBLY WITH BOX

NOTE:

Do not touch the cone part of the speaker.

Temporarily install the No. 1 speaker assembly with box by attaching the guide of the No. 1 speaker assembly with box to the door panel.

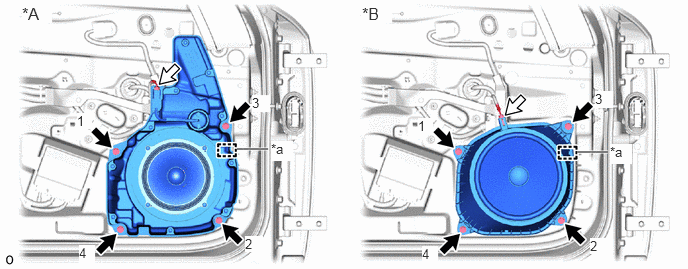

Fig 1: No. 1 Speaker Assembly With Box And Screws Tightening Sequence

*A	for 12 Speakers	*B	for 13 Speakers
*a	Guide	-	-

Connect the connector.
Install the No. 1 speaker assembly with box with the 4 screws.
HINT:
- Tighten the screws in the order shown in the illustration.
- Screws 3 and 4 shown in the illustration can be installed in any order.

INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH (for Front Passenger Side)
Refer to PROCEDURE - Step 43 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 43 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 43 [04/2020 - 05/2023] , or refer to REASSEMBLY [05/2023 - ]
INSTALL FRONT DOOR ASSIST GRIP ASSEMBLY RH (for Front Passenger Side)
Refer to PROCEDURE - Step 45 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 45 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 45 [04/2020 - 05/2023] , or refer to REASSEMBLY [05/2023 - ]
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (for Driver Side)
Refer to PROCEDURE - Step 39 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 39 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 39 [04/2020 - 05/2023] , or refer to REASSEMBLY [05/2023 - ]
INSTALL FRONT DOOR TRIM COVER SUB-ASSEMBLY LH (for Driver Side)
Refer to PROCEDURE - Step 41 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 41 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 41 [04/2020 - 05/2023] , or refer to REASSEMBLY [05/2023 - ]
INSPECT POWER WINDOW OPERATION
Refer to OPERATION CHECK [03/2017 - ]
