Removal [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT DOOR TRIM COVER SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 4 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 4 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 4 [04/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]
REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 6 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 6 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 6 [04/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]
REMOVE FRONT DOOR ASSIST GRIP ASSEMBLY RH (for Front Passenger Side)
Refer to PROCEDURE - Step 8 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 8 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 8 [04/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]
REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH (for Front Passenger Side)
Refer to PROCEDURE - Step 10 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 10 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 10 [04/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]

REMOVE INDICATOR LIGHT ASSEMBLY

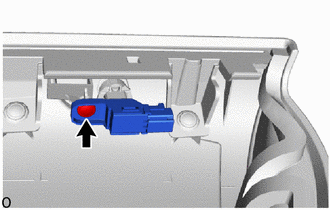

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

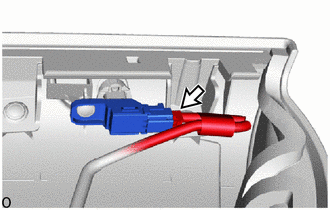

Remove the screw and indicator light assembly from the front door trim board sub-assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE INDICATOR LIGHT BRACKET

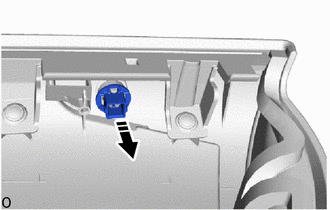

Remove the indicator light bracket from the front door trim board sub-assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE INDICATOR LIGHT COVER

Remove the indicator light cover from the front door trim board sub-assembly LH.

Remove in this Direction
