Removal [05/2023 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT DOOR TRIM COVER SUB-ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 4

  2. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 6

  3. REMOVE FRONT DOOR ASSIST GRIP ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 8

  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 10

  5. REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX

    Refer to PROCEDURE - Step 5

  6. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH
    1. GTY1242968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Open

      Detach the claw and open the wire harness protector.

    2. Disconnect the 2 connectors.
    3. Detach the clamp.
      GTY1241603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Open the front door glass sub-assembly LH fully open position.
      1. Connect the No. 2 front door wire LH connector.

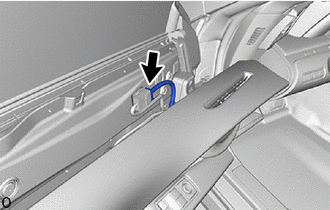

        GTY951735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Insert the upper portion of the front door trim board sub-assembly LH into the front door panel to temporarily set it.

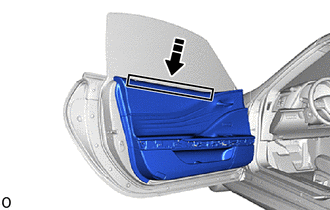

        GTY951660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Temporarily Set in this Direction
      3. Turn the engine switch on (IG).
      4. For Driver Side:
        1. Operate the multiplex network master switch assembly and set the front door glass sub-assembly LH to the fully open position.
      5. For Front Passenger Side:
        1. Operate the power window regulator switch assembly and set the front door glass sub-assembly RH to the fully open position.
      6. Turn the engine switch off.
      7. Lift up the front door trim board sub-assembly LH in the direction of the arrow and detach the guide.
        GTY797177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
      8. Disconnect the No. 2 front door wire LH connector.
        GTY817881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 3 hole plugs.
      GTY817857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 3 nuts.

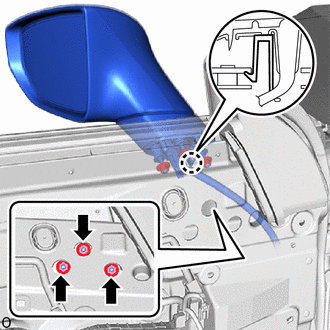

      GTY1241602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Hold the outer rear view mirror assembly with one hand so that it does not drop.

    7. Detach the claw and remove the outer rear view mirror assembly LH.
