Removal [03/2017 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE ROOF DRIP SIDE FINISH MOULDING LH
See step 1
- REMOVE REAR ROOF SIDE GARNISH SUB-ASSEMBLY LH
See step 2
- REMOVE FRONT ROOF SIDE RAIL WEATHERSTRIP LH
Refer to REMOVAL [03/2017 - 05/2023] , or refer to REMOVAL [05/2023 - ]
- REMOVE FRONT ROOF SIDE RAIL WEATHERSTRIP RETAINER LH
- REMOVE ROOF SIDE RAIL GARNISH SUB-ASSEMBLY LH
- Apply protective tape around the roof side rail garnish sub-assembly LH.

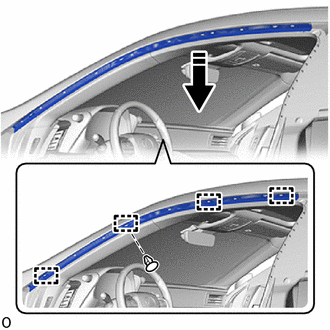

Protective Tape - - - Remove the 7 screws.

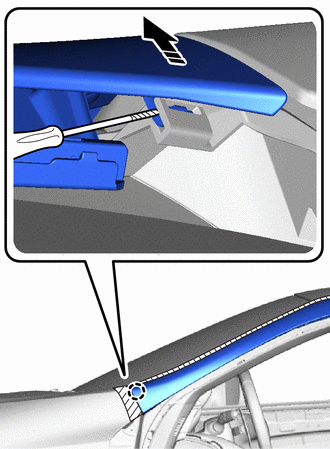

- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw.

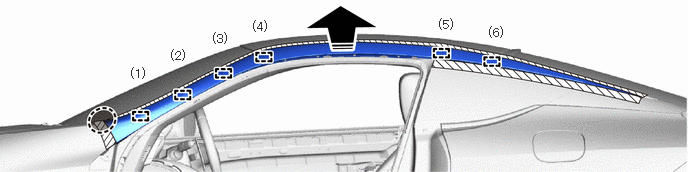

Remove in this Direction Protective Tape - Place your hand at the position in the illustration and pull in the direction indicated by the arrow to detach the pin and remove the butyl tape and roof side rail garnish sub-assembly LH in the order shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

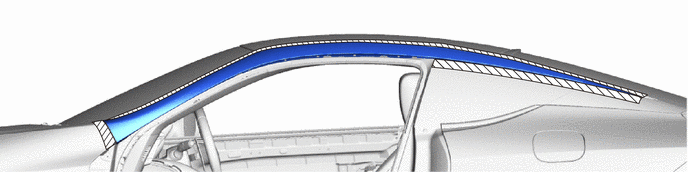

Place Hand Here Remove in this Direction NOTE:Remove any remaining butyl tape from the body.
- Apply protective tape around the roof side rail garnish sub-assembly LH.
