Installation [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ROOF SIDE RAIL GARNISH SUB-ASSEMBLY LH
    1. Attach the claw and pin in the order shown in the illustration.

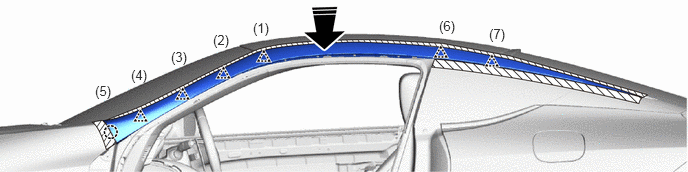

      Fig 1: Roof Side Rail Garnish Sub-Assembly LH Claw And Pin Attaching Sequence
      GTY951298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    2. Adjust the roof side rail garnish sub-assembly LH so that it is aligned as shown in the illustration.

      HINT:

      Firmly press the butyl tape to attach it.

      Standard

      Area Standard Value
      A 1.5 to 5.5 mm (0.0591 to 0.2165 in.)
      B 0.2 to 2.0 mm (0.00787 to 0.07874 in.)

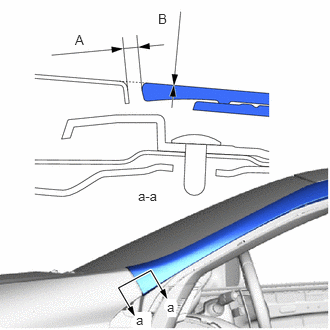

      GTY950677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the roof side rail garnish sub-assembly LH with the 7 screws.

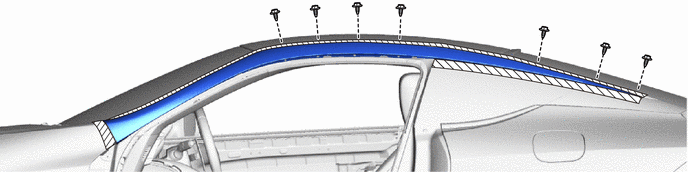

      GTY951242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT ROOF SIDE RAIL WEATHERSTRIP RETAINER LH
    1. Insert the guides and attach the clip.

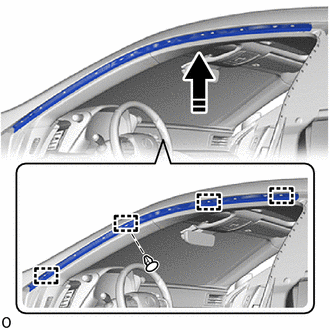

      GTY784032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the front roof side rail weatherstrip retainer LH with the 9 screws.

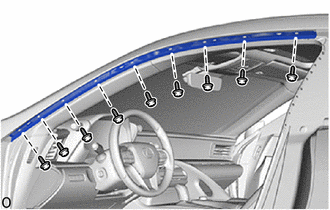

      GTY785979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT ROOF SIDE RAIL WEATHERSTRIP LH

    Refer to INSTALLATION [03/2017 - ]

  4. INSTALL REAR ROOF SIDE GARNISH SUB-ASSEMBLY LH

    See step  1

  5. INSTALL ROOF DRIP SIDE FINISH MOULDING LH

    See step  1
