Removal [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ROOF DRIP SIDE FINISH MOULDING LH

    Refer to REMOVAL [03/2017 - ]

  2. REMOVE REAR ROOF SIDE GARNISH SUB-ASSEMBLY LH

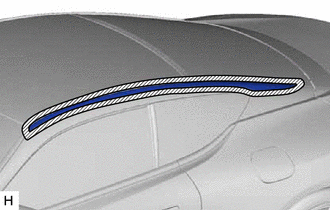

    1. Apply protective tape around the rear roof side garnish sub-assembly LH as shown in the illustration.
      GTY800054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

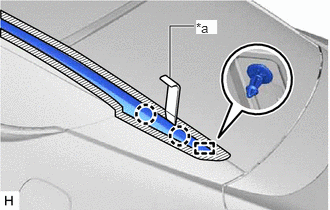

    2. Using moulding remover D, detach the claws and pin as shown in the illustration.
      GTY807610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Moulding Remover D
      Protective Tape

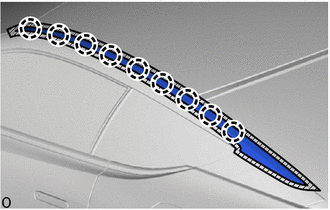

    3. Detach the claws and remove the rear roof side garnish sub-assembly LH.
      GTY826651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      • Remove the remaining 11 No. 1 outside moulding retainers on the vehicle side.
      • Do not reuse the No. 1 outside moulding retainers.
