Removal [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT REAR WHEEL HOUSE PLATE LH

    See step  1

  2. REMOVE BODY ROCKER PANEL MOULDING ASSEMBLY LH
    1. Apply protective tape around the body rocker panel moulding assembly LH.
      GTY816484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Turn the steering wheel to the left to provide space for the screw to be removed.
      GTY780037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 screws.
    4. Remove the 2 screws and 5 clips.
      GTY780038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 screws.
      GTY779734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

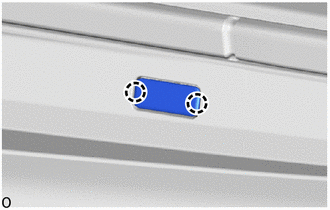

    6. Detach the claws and remove the rocker panel moulding end cover.
      GTY800109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other sides.

    7. Remove the screw.
      GTY800110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other sides.

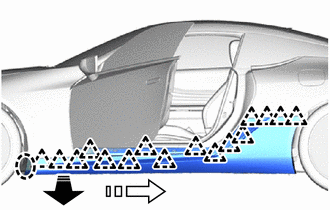

    8. Place your hand at the position shown in the illustration and while pulling toward the outside of the vehicle, detach the clips and remove the body rocker panel moulding assembly LH.
      GTY818338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction (1)
      Remove in this Direction (2)
