Components [01/2021 - ]

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

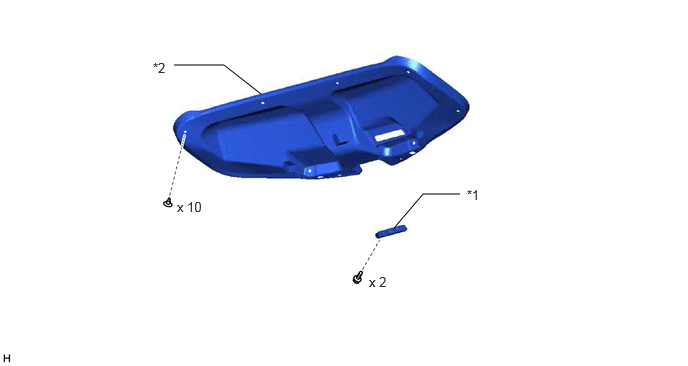

Fig 1: Rear Spoiler Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

LUGGAGE COMPARTMENT DOOR ASSIST GRIP

LUGGAGE COMPARTMENT DOOR COVER

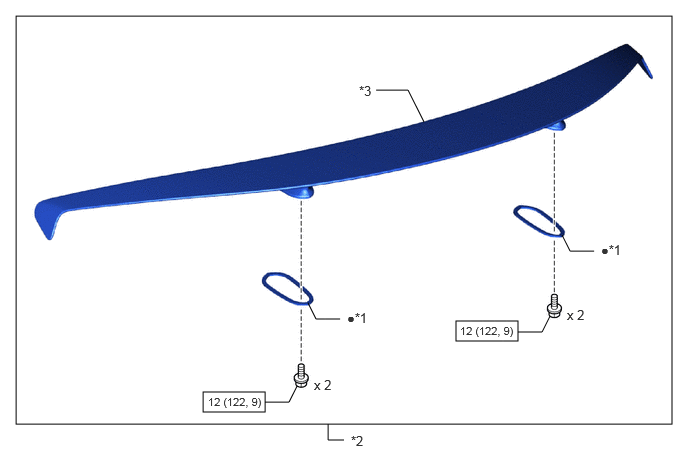

Fig 2: Rear Spoiler Replacement Components With Torque Specifications (2 Of 2)

*1	REAR SPOILER SEAL	*2	REAR SPOILER SUB-ASSEMBLY
*3	REAR SPOILER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
