INSTALL REAR BUMPER COVER

Connect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

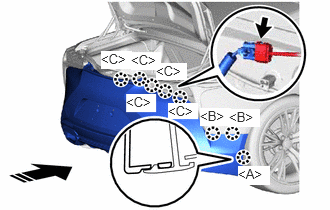

Attach the claws <B> and claws <C>.
HINT:

Use the same procedure for the RH and LH sides.
Attach the claw <A>.
HINT:

Use the same procedure for the RH and LH sides.

Fold back a part of edge of the rear fender liner, and attach the claw and grommet.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for the RH and LH sides.

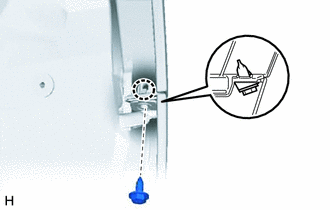

Install the screw.
HINT:

Use the same procedure for the RH and LH sides.

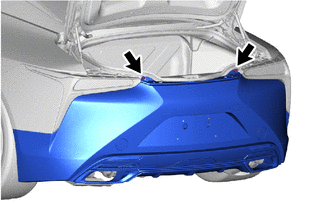

Install the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

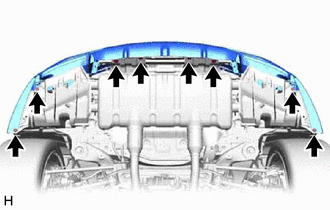

Install the 8 clips.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

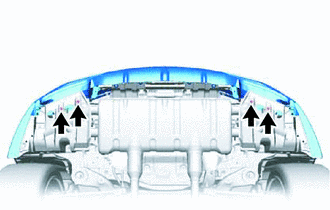

Install the 4 screws.

INSTALL REAR BUMPER CENTER GUARD

Attach the claws.

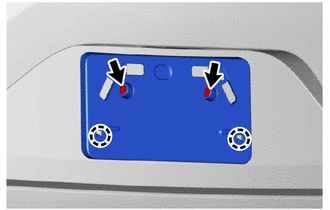

Install the rear bumper center guard with the 2 screws.

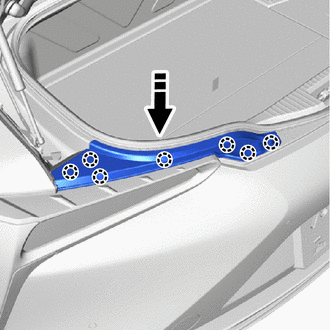

INSTALL REAR COMBINATION LIGHT COVER LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction
1. Attach the claws as shown in the illustration, and install the rear combination light cover LH.
INSTALL REAR COMBINATION LIGHT COVER RH
HINT:

Use the same procedure described for the LH side.
