Removal [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ROOF DRIP SIDE FINISH MOULDING LH

    Refer to REMOVAL [03/2017 - ]

  2. REMOVE REAR ROOF SIDE GARNISH SUB-ASSEMBLY LH

    Refer to REMOVAL [03/2017 - ]

  3. REMOVE UPPER QUARTER WINDOW MOULDING LH
    1. Apply protective tape around the upper quarter window moulding LH.

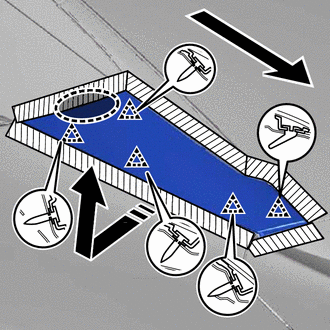

    2. Place your hand at the position shown in the illustration and remove the upper quarter window moulding LH.
      GTY826589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Order of Removal
      Remove in this Direction
      Protective Tape
