Installation [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL UPPER QUARTER WINDOW MOULDING LH

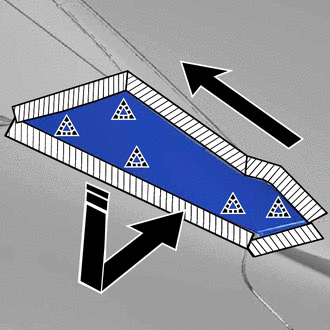

Set the upper quarter window moulding LH in the direction indicated by arrow 1 shown in the illustration, attach the clips and install the upper quarter window moulding LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Order of Install
	Install in this Direction (1)
	Protective Tape

Remove the protective tape.

INSTALL REAR ROOF SIDE GARNISH SUB-ASSEMBLY LH
Refer to INSTALLATION [03/2017 - ]
INSTALL ROOF DRIP SIDE FINISH MOULDING LH
Refer to INSTALLATION [03/2017 - ]
