Removal [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE SYMBOL EMBLEM

HINT:

When removing the symbol emblem, heat the luggage compartment door panel and symbol emblem using a heat light.

Standard

Item	Temperature
Luggage Compartment Door Panel	40 to 60°C (104 to 140°F)
Symbol Emblem	20 to 30°C (68 to 86°F)

WARNING:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

Put protective tape around the symbol emblem.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

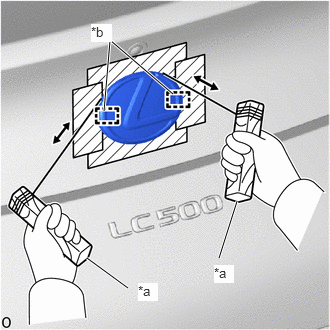

*a	Wooden Block
*b	Boss Position
	Protective Tape

Insert piano wire between the luggage compartment door panel and symbol emblem.
HINT:

Be careful of the boss positions.
Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.
Pull the piano wire and scrape off the double-sided tape that holds the symbol emblem to the luggage compartment door panel.
NOTE:
Be careful not to damage the luggage compartment door panel.
Remove the symbol emblem.

REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR PLATE

HINT:

When removing the No. 3 luggage compartment door plate, heat the rear bumper cover and No. 3 luggage compartment door plate using a heat light.

Standard

Item	Temperature
Rear Bumper Cover	20 to 30°C (68 to 86°F)
No. 3 Luggage Compartment Door Plate	20 to 30°C (68 to 86°F)

WARNING:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

*a	Heated Part
*b	Heat Light

Put protective tape around the No. 3 luggage compartment door plate.

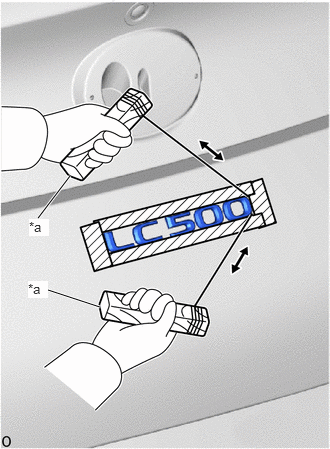

*a	Wooden Block
	Protective Tape

Insert piano wire between the rear bumper cover and No. 3 luggage compartment door plate.
Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.
Pull the piano wire and scrape off the double-sided tape that holds the No. 3 luggage compartment door plate to the rear bumper cover.
NOTE:
Be careful not to damage the rear bumper cover.
Remove the No. 3 luggage compartment door plate.
