Installation [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SYMBOL EMBLEM

    HINT:

    When installing the symbol emblem, heat the luggage compartment door panel and symbol emblem using a heat light.

    Standard

    Item Temperature
    Luggage Compartment Door Panel 40 to 60°C (104 to 140°F)
    Symbol Emblem 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Clean the luggage compartment door panel surface.
      1. Using a heat light, heat the luggage compartment door panel surface.
      2. Remove the double-sided tape from the luggage compartment door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the luggage compartment door panel and a new symbol emblem.
    3. Remove the peeling paper from the face of the symbol emblem.

      HINT:

      After removing the peeling paper, keep the exposed adhesive free from foreign matter.

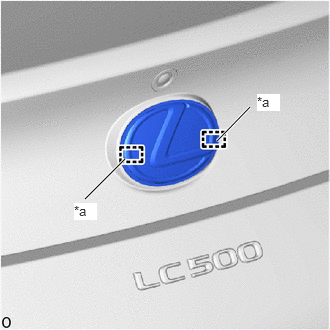

    4. Align the boss positions and install the symbol emblem.
      GTY817169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Boss

      HINT:

      Press the symbol emblem firmly to install it.

  2. INSTALL NO. 3 LUGGAGE COMPARTMENT DOOR PLATE

    HINT:

    When installing the No. 3 luggage compartment door plate, heat the rear bumper cover and No. 3 luggage compartment door plate using a heat light.

    Standard

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    No. 3 Luggage Compartment Door Plate
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Clean the rear bumper cover surface.
      1. Using a heat light, heat the rear bumper cover surface.
      2. Remove the double-sided tape from the rear bumper cover.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear bumper cover and a new No. 3 luggage compartment door plate.
    3. Remove the peeling paper from the face of the No. 3 luggage compartment door plate.

      HINT:

      After removing the peeling paper, keep the exposed adhesive free from foreign matter.

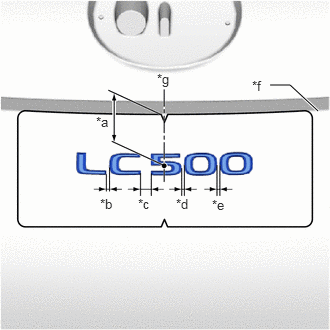

    4. Install the No. 3 luggage compartment door plate as shown in the illustration.

      HINT:

      Press the No. 3 luggage compartment door plate firmly to install it.

      GTY796486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 26.9 mm (1.059 in.)
      *b 2.133 mm (0.084 in.)
      *c 7.214 mm (0.284 in.)
      *d 1.572 mm (0.062 in.)
      *e 1.794 mm (0.071 in.)
      *f R End
      *g Center of the luggage compartment door panel
