Installation [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT DOOR FRONT LOWER FRAME UPPER COVER LH

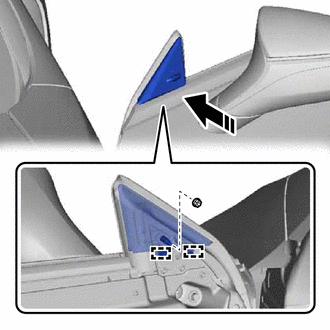

Insert the guides.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Install the front door front lower frame upper cover LH with the nut as shown in the illustration.
Torque: 2.4 N.m (24 kgf/cm, 21 in.lbf)

INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH
Refer to PROCEDURE - Step 29 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 29 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 29 [04/2020 - 05/2023] , or refer to REASSEMBLY [05/2023 - ]
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (for Driver Side)
Refer to PROCEDURE - Step 39 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 39 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 39 [04/2020 - 05/2023] , or refer to REASSEMBLY [05/2023 - ]
INSTALL FRONT DOOR TRIM COVER SUB-ASSEMBLY LH (for Driver Side)
Refer to PROCEDURE - Step 41 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 41 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 41 [04/2020 - 05/2023] , or refer to REASSEMBLY [05/2023 - ]
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH (for Front Passenger Side)
Refer to PROCEDURE - Step 43 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 43 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 43 [04/2020 - 05/2023] , or refer to REASSEMBLY [05/2023 - ]
INSTALL FRONT DOOR ASSIST GRIP ASSEMBLY RH (for Front Passenger Side)
Refer to PROCEDURE - Step 45 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 45 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 45 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 45 [05/2023 - ]
