Components [03/2017 - ]
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

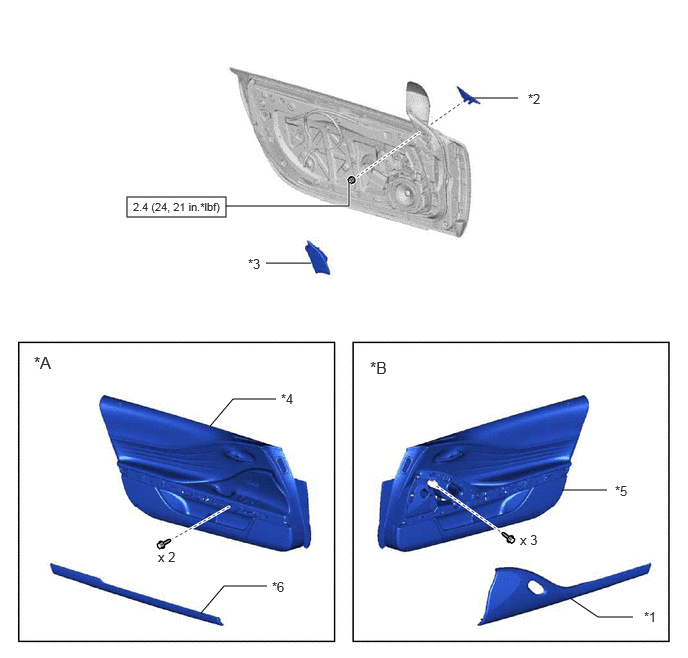

| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT DOOR ASSIST GRIP ASSEMBLY RH | *2 | FRONT DOOR FRONT LOWER FRAME UPPER COVER LH |
| *3 | FRONT DOOR LOWER FRAME BRACKET GARNISH LH | *4 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH |
| *5 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH | *6 | FRONT DOOR TRIM COVER SUB-ASSEMBLY LH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
