Removal [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

    Refer to PROCEDURE - Step 1 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 1 [01/2021 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]

  2. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 2 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 2 [01/2021 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]

  3. DISCONNECT SLIDING ROOF DRAIN HOSE

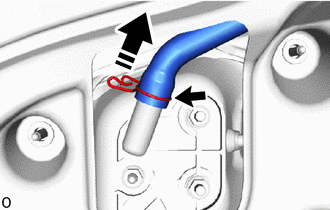

    1. Remove the clip.
      GTY953646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the sliding roof drain hose.

      HINT:

      Use the same procedure for the RH side and LH side.

  4. REMOVE REAR SPOILER DRAIN END CAP LH

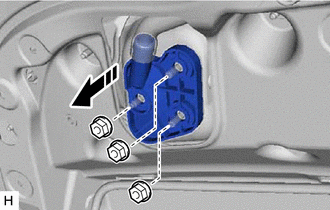

    1. Remove the 3 nuts and rear spoiler drain end cap LH.
      GTY792703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE REAR SPOILER DRAIN END CAP RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE REAR SPOILER NO. 2 SEAL

    HINT:

    When removing the rear spoiler No. 2 seal, if the double-sided tape is difficult to remove, heat the adhesive of the rear spoiler No. 2 seal and rear spoiler drain end cap LH using a heat light.

    Standard Value

    Part Temperature
    Rear Spoiler Drain End Cap LH 20 to 30°C (68 to 86°F)
    Rear Spoiler No. 2 Seal
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear spoiler No. 2 seal and rear spoiler drain end cap LH excessively.

    1. Remove the rear spoiler No. 2 seal.
      GTY787811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR SPOILER SEAL

    HINT:

    Use the same procedure described for the rear spoiler NO. 2 seal.

  8. REMOVE ACTIVE REAR WING

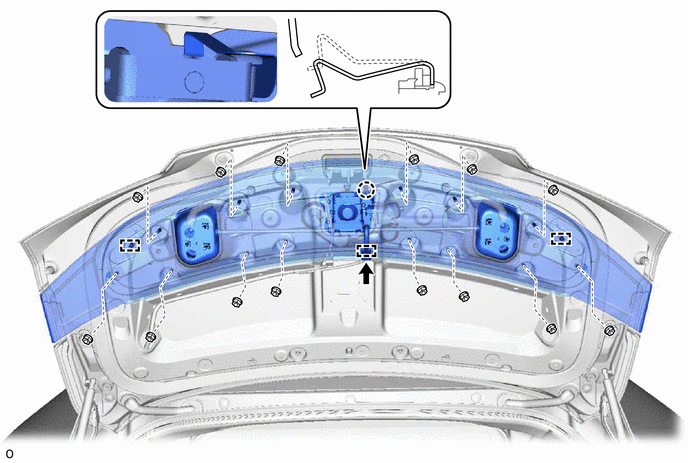

    1. Using needle-nose pliers, disconnect the connector.
      GTY952877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 14 nuts.
    3. Detach the claw and guides and remove the active rear wing.
  9. REMOVE COLLAR
    1. Remove the 8 collars.
      GTY787874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
