Installation [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

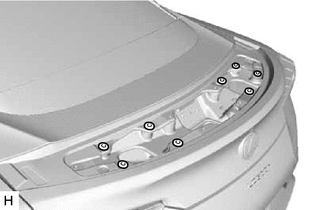

  1. INSTALL COLLAR
    1. Install the 8 collars.
      GTY787874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

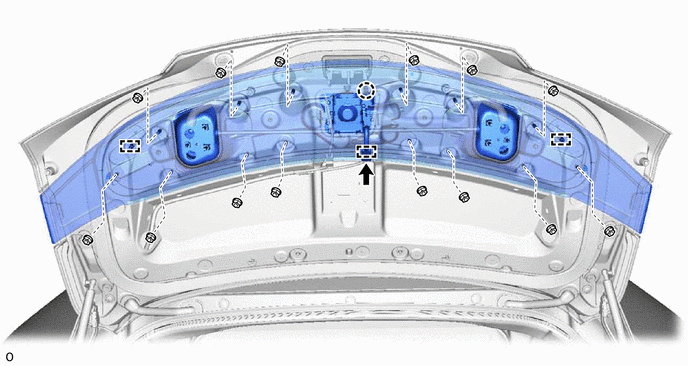

  2. INSTALL ACTIVE REAR WING
    1. Insert the 2 guides and attach the claw.
      GTY953745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the active rear wing with the 14 nuts.

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

    3. Connect the connector.

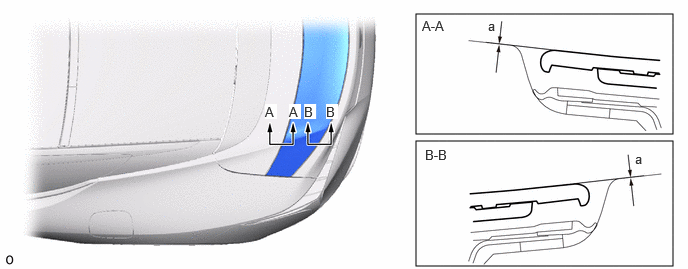

  3. INSPECT REAR SPOILER SUB-ASSEMBLY
    1. Check the difference in level (a) between the luggage compartment door panel and upper surface of the rear spoiler when the rear spoiler is retracted.
      GTY804001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard

      Area Measurement Area Measurement
      Front [A-A] 0 to 1.5 mm (0 to 0.059 in.)
      0 to -1.5 mm (0 to -0.059 in.)      		 Rear [B-B] 0 to 1.5 mm (0 to 0.059 in.)
      0 to -1.5 mm (0 to -0.059 in.)

      HINT:

      • For the (a) dimension, (+) represents the condition that the rear spoiler is above the luggage compartment door panel level. (-) represents the condition that the rear spoiler is below the luggage compartment door panel level.
      • Use the same procedure for the RH and LH sides.
  4. ADJUST REAR SPOILER SUB-ASSEMBLY

    HINT:

    Use the same procedure for the other side.

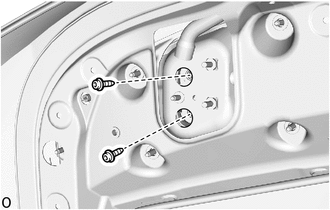

    1. Using a T30 "TORX" socket wrench, remove the 2 "TORX" screws.
      GTY800201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

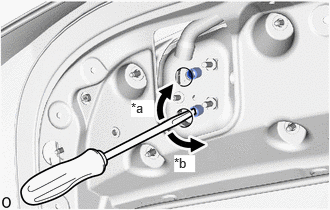

    2. Using a screwdriver, turn the 2 collars of the top cover lock control link sub-assembly LH to adjust the height.
      GTY797896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Up
      *b Down
    3. Using a T30 "TORX" socket wrench, install 2 new "TORX" screws.

      Torque: 5.1 N.m (52 kgf/cm, 45 in.lbf)

      NOTE:

      Do not reuse the "TORX" screw that has been removed.

  5. INSTALL REAR SPOILER NO. 2 SEAL

    HINT:

    When installing the rear spoiler No. 2 seal, heat the rear spoiler No. 2 seal and rear spoiler drain end cap LH using a heat light.

    Standard Value

    Part Temperature
    Rear Spoiler Drain End Cap LH 20 to 30°C (68 to 86°F)
    Rear Spoiler No. 2 Seal
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear spoiler No. 2 seal and rear spoiler drain end cap LH excessively.

    1. When reusing the rear spoiler drain end cap LH:
      1. Using a heat light, heat the rear spoiler drain end cap LH surface.
      2. Remove any remaining double-sided tape from the rear spoiler drain end cap LH.
      3. Wipe off any tape adhesive residue with cleaner.
        NOTE:
        • Installing the rear spoiler No. 2 seal with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
        • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
        • Also, clean a new rear spoiler drain end cap LH surface.
    2. Using a heat light, heat the rear spoiler drain end cap LH and a new rear spoiler No. 2 seal.
      NOTE:

      Do not heat the rear spoiler No. 2 seal and rear spoiler drain end cap LH excessively.

    3. Remove the release paper from the rear spoiler No. 2 seal.
      NOTE:

      After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.

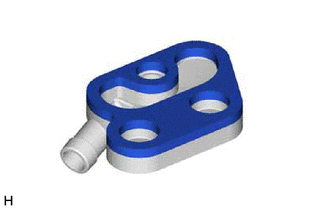

    4. Install the rear spoiler No. 2 seal in the position shown in the illustration.
      GTY787811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      The application strength of the rear spoiler No. 2 seal will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

      HINT:

      Apply pressure so that it does not lift up from the rear spoiler drain end cap LH.

  6. INSTALL REAR SPOILER SEAL

    HINT:

    Use the same procedure described for the rear spoiler No. 2 seal.

  7. INSTALL REAR SPOILER DRAIN END CAP LH
    1. Install the rear spoiler drain end cap LH with the 3 nuts.

      Torque: 6.7 N.m (68 kgf/cm, 59 in.lbf)

  8. INSTALL REAR SPOILER DRAIN END CAP RH

    HINT:

    Use the same procedure described for the LH side.

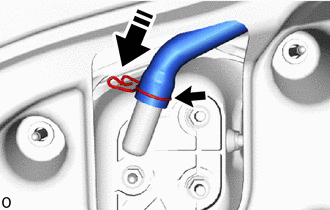

  9. CONNECT SLIDING ROOF DRAIN HOSE
    1. Connect the sliding roof hose with the clip.
      GTY953543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      HINT:

      Use the same procedure for the RH and LH sides.

  10. INSTALL LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 22 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 23 [01/2021 - ]

  11. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP

    Refer to PROCEDURE - Step 23 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 24 [01/2021 - ]

  12. INITIALIZE ACTIVE REAR WING SYSTEM

    Refer to INITIALIZATION [03/2017 - ]

  13. CHECK ACTIVE REAR WING SYSTEM

    Refer to OPERATION CHECK [03/2017 - ]
