  1. REMOVE REAR SPOILER SUB-ASSEMBLY
    1. Using a T30 "TORX" socket wrench, remove the 4 "TORX" screws and rear spoiler sub-assembly.
      GTY800205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR SPOILER PROTECTOR LH

    HINT:

    When removing the rear spoiler protector LH, if the double-sided tape is difficult to remove, heat the adhesive of the rear spoiler protector LH and rear spoiler sub-assembly using a heat light.

    Standard Value

    Part Temperature
    Rear Spoiler Sub-assembly 20 to 30°C (68 to 86°F)
    Rear Spoiler Protector LH
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear spoiler protector LH and rear spoiler sub-assembly excessively.

    1. Remove the rear spoiler protector LH.

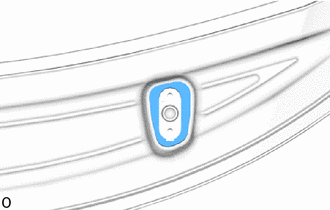

      GTY953767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SPOILER PROTECTOR RH

    HINT:

    Use the same procedure described for the LH side.

  4. REMOVE REAR SPOILER NO. 12 PROTECTOR LH

    HINT:

    When removing the rear spoiler No. 12 protector LH, if the double-sided tape is difficult to remove, heat the adhesive of the rear spoiler No. 12 protector LH and rear spoiler sub-assembly using a heat light.

    Standard Value

    Part Temperature
    Rear Spoiler Sub-assembly 20 to 30°C (68 to 86°F)
    Rear Spoiler No. 12 Protector LH
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear spoiler No. 12 protector LH and rear spoiler sub-assembly excessively.

    1. Remove the rear spoiler No. 12 protector LH.
      GTY953750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SPOILER NO. 12 PROTECTOR RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE REAR SPOILER COVER LH
    1. Detach the claws and remove the rear spoiler cover LH.

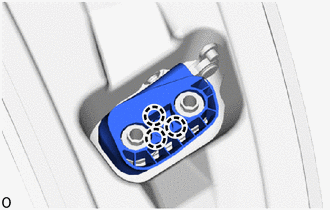

      GTY787820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR SPOILER COVER RH

    HINT:

    Use the same procedure described for the LH side.

  8. REMOVE REAR SPOILER COVER

    HINT:

    When removing the rear spoiler cover, if the double-sided tape is difficult to remove, heat the adhesive of the rear spoiler cover and rear spoiler sub-assembly using a heat light.

    Standard Value

    Part Temperature
    Rear Spoiler Sub-assembly 20 to 30°C (68 to 86°F)
    Rear Spoiler Cover
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear spoiler cover and rear spoiler sub-assembly excessively.

    1. Remove the rear spoiler cover.

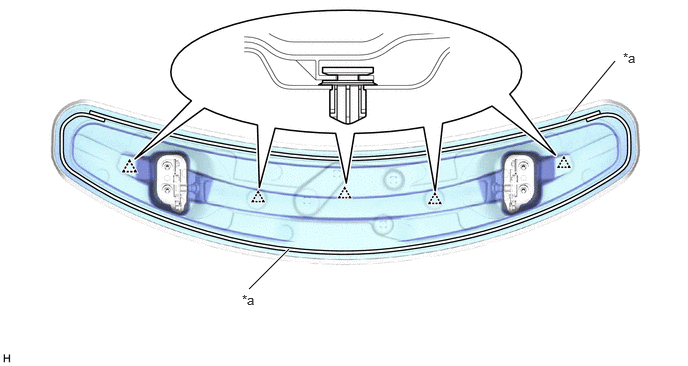

      GTY949339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape - -
  9. REMOVE CONNECTOR WIRE
    1. Detach the clamp.

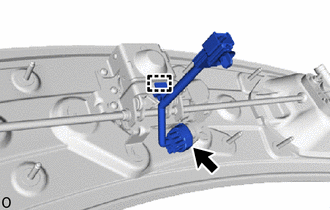

      GTY953755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the connector wire.
  10. REMOVE TOP COVER LOCK CONTROL LINK SUB-ASSEMBLY LH
    1. Remove the 2 bolts.

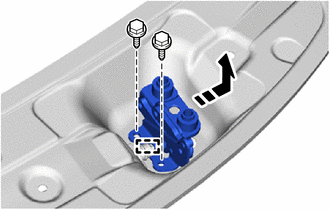

      GTY828188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the guide and remove the top cover lock control link sub-assembly LH.
  11. REMOVE TOP COVER LOCK CONTROL LINK SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  12. REMOVE REAR SPOILER DRIVE GEAR SUB-ASSEMBLY
    1. Remove the 4 bolts.

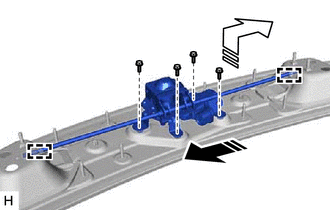

      GTY798384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Detach the guide as shown in the illustration and remove the rear spoiler drive gear sub-assembly from the rear spoiler insert.
  13. REMOVE REAR SPOILER INSERT
  14. REMOVE REAR SPOILER MOTOR ASSEMBLY
    1. Remove the 4 screws and spindle assembly.

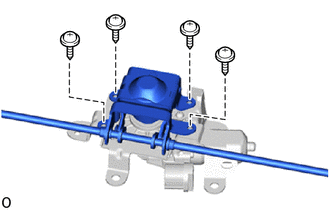

      GTY800088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T25 "TORX" socket wrench, remove the 3 "TORX" screws and rear spoiler motor assembly from the rear spoiler motor bracket.
      GTY832726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR SPOILER DRIVE GEAR ASSEMBLY (Available sa Supply Part)
