Removal [03/2017 - 05/2023]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR CONSOLE BOX POCKET

    Refer to PROCEDURE - Step 1

  2. REMOVE RADIO REMOTE TUNING SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to REMOVAL [03/2017 - ]

  4. REMOVE SHIFTING HOLE COVER ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE NO. 4 COMBINATION SWITCH ASSEMBLY
    1. Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and remove the No. 4 combination switch assembly.

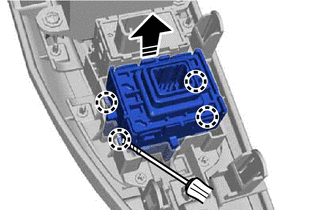

      GTY833918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      Protective Tape
