Removal [03/2017 - 05/2023]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    Refer to PRECAUTION [03/2017 - 04/2020] , or refer to PRECAUTION [04/2020 - 05/2023]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [03/2017 - 05/2023]

  2. REMOVE NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 11 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 12 [01/2021 - 05/2023]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    WARNING:
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 90 seconds after disconnecting the cable from the negative(-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]

  4. REMOVE NO. 1 DECK BOARD

    Refer to PROCEDURE - Step 10 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 11 [01/2021 - 05/2023]

  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 12 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 13 [01/2021 - 05/2023]

  6. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 15 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 16 [01/2021 - 05/2023]

  7. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 18 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 19 [01/2021 - 05/2023]

  8. REMOVE INNER LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 19 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 20 [01/2021 - 05/2023]

  9. REMOVE NO. 3 DECK BOARD BRACKET

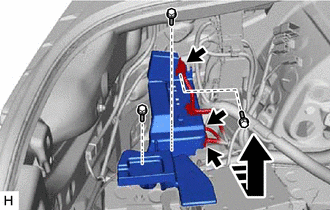

    1. Disconnect the 3 connectors.
      GTY832931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the 3 bolts and No. 3 deck board bracket as shown in the illustration.
  10. REMOVE SPOILER CONTROL ECU ASSEMBLY

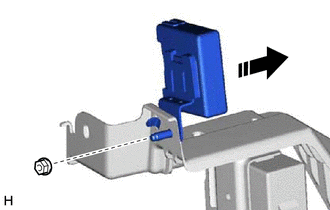

    1. Remove the nut and spoiler control ECU assembly from the No. 3 deck board bracket as shown in the illustration.
      GTY823438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  11. REMOVE NO. 1 COMPUTER BRACKET
    1. Detach the claw and remove the spoiler control ECU assembly as shown in the illustration.
      GTY836484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
