Components [03/2017 - ]

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

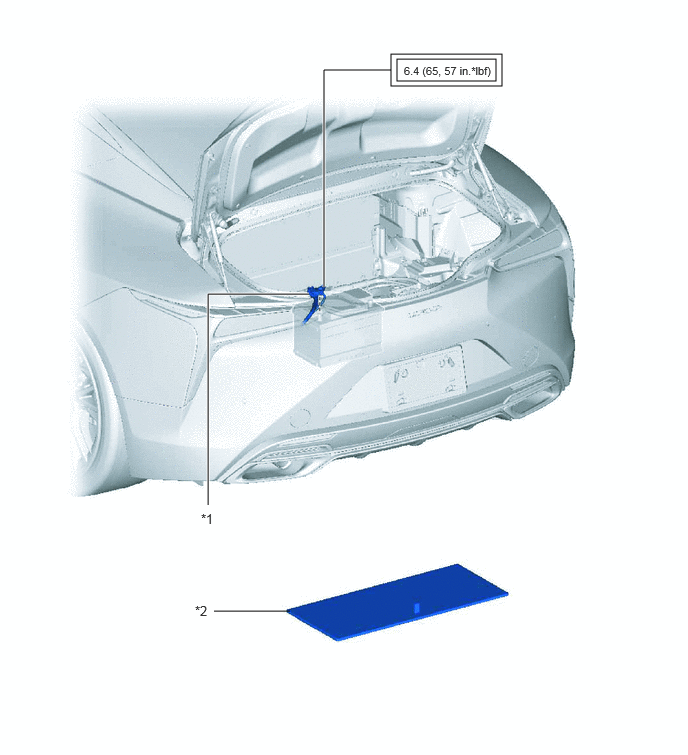

Fig 1: Active Rear Wing ECU Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NEGATIVE BATTERY TERMINAL	*2	NO. 2 DECK BOARD
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

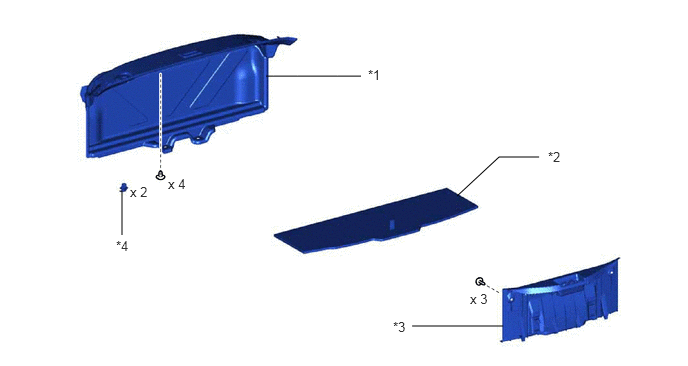

Fig 2: Active Rear Wing ECU Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT LUGGAGE COMPARTMENT TRIM COVER	*2	NO. 1 DECK BOARD
*3	REAR FLOOR FINISH PLATE	*4	ROPE HOOK

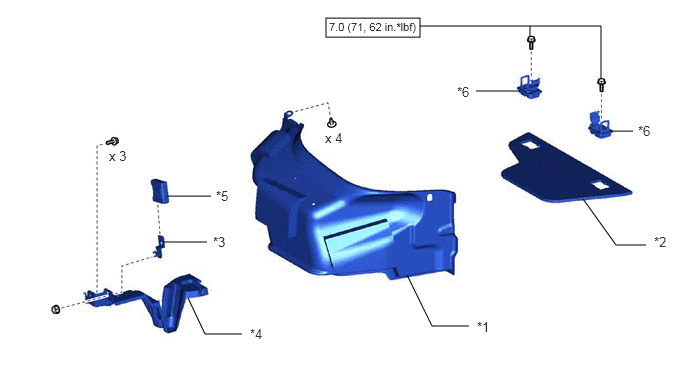

Fig 3: Active Rear Wing ECU Replacement Components With Torque Specifications (3 Of 3)

*1	INNER LUGGAGE COMPARTMENT TRIM COVER LH	*2	LUGGAGE COMPARTMENT TRIM COVER LH
*3	NO. 1 COMPUTER BRACKET	*4	NO. 3 DECK BOARD BRACKET
*5	SPOILER CONTROL ECU ASSEMBLY	*6	ROPE HOOK ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
