Installation [03/2017 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL COURTESY LIGHT ASSEMBLY

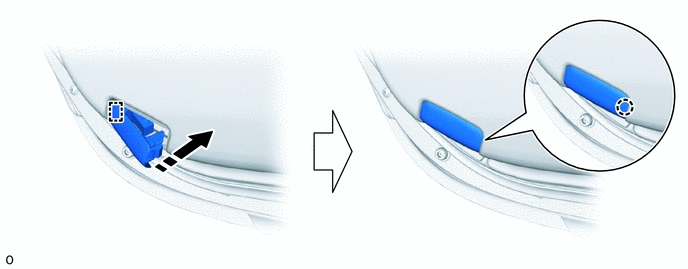

- For LH Side:
- Connect the connector.
- Attach the hook to set the courtesy light assembly to the front door trim board.
- Push the courtesy light assembly to attach the claw to install it.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Install in this Direction |
- |
- |

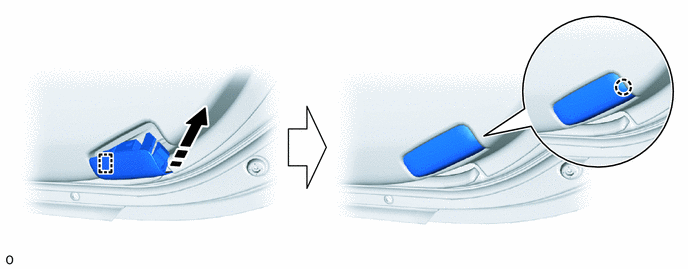

- For RH Side:
- Connect the connector.
- Attach the hook to set the courtesy light assembly to the front door trim board.
- Push the courtesy light assembly to attach the claw to install it.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Install in this Direction |
- |
- |
