Adjustment [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT FITTING OF HOOD SUB-ASSEMBLY

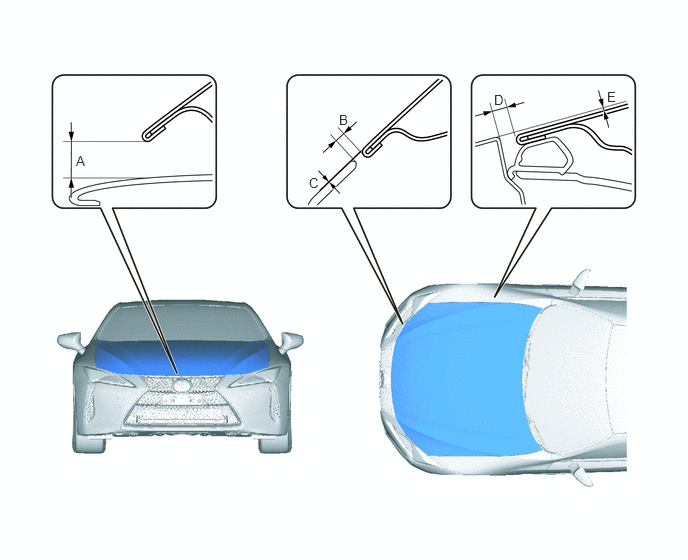

    1. Check that the clearance measurements of areas A to E are within the standard ranges.
      GTY781185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Clearance

      Area Specified Condition Area Specified Condition
      A
      (Reference)      		 15.85 mm (0.624 in.) B 1.85 to 5.85 mm (0.073 to 0.230 in.)
      C -1.85 to 2.25 mm (-0.073 to 0.089 in.) D
      (Reference)      		 3.4 mm (0.134 in.)
      E
      (Reference)      		 1.3 mm (0.051 in.) - -
  2. REMOVE RADIATOR SUPPORT TO FRAME SEAL RH

    Refer to PROCEDURE - Step 1 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 1 [05/2023 - ]

  3. REMOVE RADIATOR SUPPORT TO FRAME SEAL LH

    Refer to PROCEDURE - Step 2 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]

  4. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 3 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]

  5. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR

    See step  5 [03/2017 - 05/2023], or refer to REMOVAL [05/2023 - ]

  6. ADJUST HOOD SUB-ASSEMBLY
    1. Adjust the hood position.

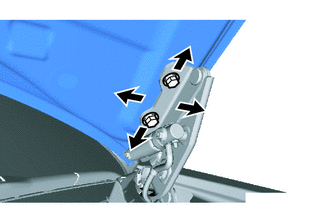

      1. Loosen the 4 hinge bolts on the hood and adjust the hood position.
        GTY809477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Move the hood and adjust the clearance between the hood and front fender.
      3. Tighten the 4 hinge bolts on the hood after the adjustment.

        Torque: 13 N*m (133 kgf*cm, 9.6 ft.*lbf)

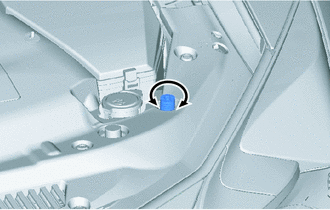

    2. Adjust the height of the front end of the hood using the hood bumper cushions.
      GTY809478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Adjust the 2 cushion rubbers so that the hood and fender are aligned.

        HINT:

        Raise or lower the front end of the hood by turning the 2 cushion rubbers.

    3. Adjust the hood lock.
      1. Loosen the 3 bolts.
        GTY780366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Adjust the hood lock position so that the striker can enter it smoothly.
      3. Tighten the 3 bolts after the adjustment.

        Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  7. INSTALL HOOD LOCK RELEASE LEVER PROTECTOR

    See step  4

  8. INSTALL LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 8 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 8 [05/2023 - ]

  9. INSTALL RADIATOR SUPPORT TO FRAME SEAL LH

    Refer to PROCEDURE - Step 9 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 9 [05/2023 - ]

  10. INSTALL RADIATOR SUPPORT TO FRAME SEAL RH

    Refer to PROCEDURE - Step 10 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 10 [05/2023 - ]
