Removal [03/2017 - 05/2023]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [03/2017 - 05/2023]

  2. REMOVE NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 11 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 12 [01/2021 - 05/2023]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]

  4. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  5. SECURE STEERING WHEEL
    1. Secure the steering wheel with the seat belt in order to prevent rotation.

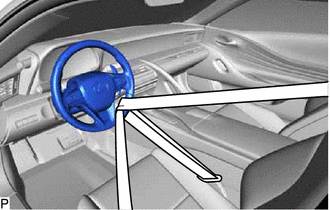

      GTY784388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      This operation is useful to prevent damage to the spiral cable.

  6. REMOVE FRONT WHEELS

    Refer to REMOVAL [03/2017 - 05/2023]

  7. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 13

  8. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 14

  9. REMOVE STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  10. SEPARATE STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY
    1. Loosen the bolt (A).
      NOTE:

      Do not remove the bolt (A).

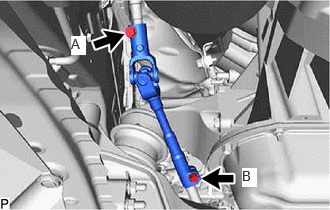

      GTY813975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt (B).
    3. Slide the steering sliding with shaft yoke sub-assembly and put matchmarks on the steering sliding with shaft yoke sub-assembly and the rack and pinion power steering gear assembly.

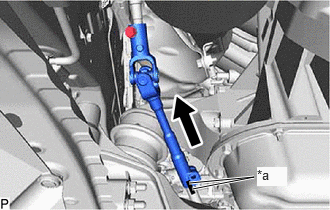

      GTY818440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    4. Separate the steering sliding with shaft yoke sub-assembly from the rack and pinion power steering gear assembly.
  11. SEPARATE TIE ROD ASSEMBLY LH
    1. Remove the clip and nut.
    2. Install 2 spacers (SST spacer B) to the steering knuckle LH as shown in the illustration.

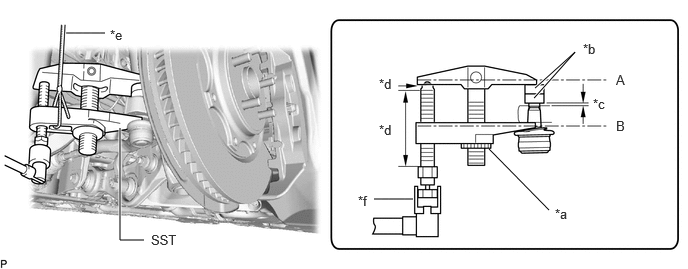

      GTY795932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Center Nut *b SST (Spacer B)
      *c 1 mm (0.0394 in.) *d Molybdenum grease application area
      *e String *f Place wrench here
      • SST: 09960-20010
        1. 09961-02060
      NOTE:

      Make sure that the clearance between the tie rod assembly LH and spacers (SST spacer B) is 1 mm (0.0394 in.) or more to prevent damage to SST.

    3. Using SST, separate the tie rod assembly LH from steering knuckle LH.
      • SST: 09960-20010
        1. 09961-02010
      WARNING:

      Apply molybdenum grease to the bolt threads and the tip of SST.

      NOTE:
      • Be sure to tighten the string firmly to secure SST to the steering knuckle to prevent SST from falling off.
      • Install SST so that (A) and (B) shown in the illustration are parallel. Otherwise, the ball joint dust cover may be damaged.
      • Be sure to place the wrench on the part shown in the illustration.
      • Do not damage the ball joint dust cover.
      • Do not damage the steering knuckle.
      • Do not damage the front disc brake dust cover.
  12. SEPARATE TIE ROD ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  13. REMOVE RACK AND PINION POWER STEERING GEAR ASSEMBLY
    1. Remove the bolt and nut, and disconnect the wire harness clamp and connector, and then disconnect the wire harness from the rack and pinion power steering gear assembly.

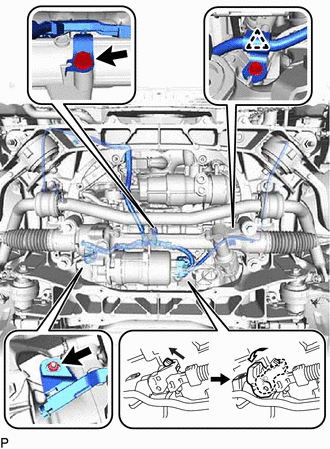

      GTY796592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Pull up the lock and release the lock lever to disconnect the connector which uses a lock.

    2. Remove the 4 bolts, 4 nuts and rack and pinion power steering gear assembly from the front suspension crossmember sub-assembly.
      GTY796593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
