Installation [03/2017 - 05/2023]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

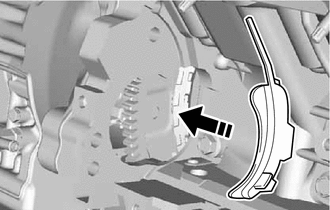

INSTALL FLYWHEEL HOUSING SIDE COVER

Install the flywheel housing side cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL STARTER ASSEMBLY

Install the starter assembly with the 2 bolts.

Torque: 37 N.m (377 kgf/cm, 27 ft.lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

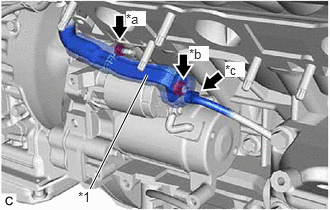

Install the terminal cover with the nut A.

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Terminal Cover
*a	Nut A
*b	Nut B
*c	Connector

Connect the starter wire with the nut B.
Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
Close the terminal cover.
Connect the starter assembly connector.

INSTALL NO. 3 EXHAUST MANIFOLD HEAT INSULATOR

Install the No. 3 exhaust manifold heat insulator with the 3 bolts.

Torque: 11.5 N.m (117 kgf/cm, 8 ft.lbf)

INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH
Refer to INSTALLATION [03/2017 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]
INSTALL NO. 2 DECK BOARD
Refer to PROCEDURE - Step 13 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 13 [01/2021 - ]
