Removal [01/2017 - 04/2020]: Procedure

  1. REMOVE REAR FLOOR SIDE MEMBER COVER LH
    1. Remove the 2 clips, 3 bolts, nut, screw and rear floor side member cover LH.
      GTY819215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR FLOOR SIDE MEMBER COVER RH
    1. Remove the 2 clips, 3 bolts, nut, screw and rear floor side member cover RH.
      GTY819214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT FENDER SEAL LH
    1. Remove the 3 clips, grommet and front fender seal LH.
      GTY819220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT FENDER SEAL RH
    1. Remove the 3 clips, grommet and front fender seal RH.
      GTY836956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT FLOOR COVER LH
    1. Remove the 4 grommets, 6 clips, nut, bolt and front floor cover LH.
      GTY819213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT FLOOR COVER RH
    1. Remove the 4 grommets, 6 clips, nut, bolt and front floor cover RH.
      GTY819211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT CENTER FLOOR BRACE SUB-ASSEMBLY
    1. Remove the 12 bolts and front center floor brace sub-assembly.
      GTY819183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 DIFFERENTIAL SUPPORT PROTECTOR
    1. Remove the 3 nuts and No. 2 differential support protector.
      GTY819223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 DIFFERENTIAL SUPPORT PROTECTOR
    1. Remove the 3 nuts and No. 1 differential support protector.
      GTY819221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR NO. 4 BUMPER SIDE SUPPORT LH
    1. Remove the 2 screws, 2 clips, grommet and rear No. 4 bumper side support LH.
      GTY819182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR NO. 4 BUMPER SIDE SUPPORT RH
    1. Remove the 2 screws, 2 clips, grommet and rear No. 4 bumper side support RH.
      GTY819181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    1. Remove the 4 bolts and 4 nuts to disconnect the front exhaust pipe assembly from the exhaust manifold assembly LH and exhaust manifold assembly RH.
      GTY819187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

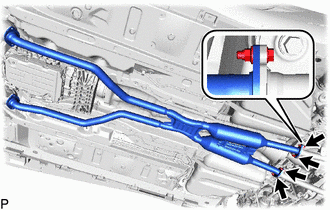

    2. Remove the 4 bolts, 4 nuts and front exhaust pipe assembly from the exhaust tailpipe assembly.
      GTY819186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 gaskets.
  13. REMOVE EXHAUST TAILPIPE ASSEMBLY
    1. Remove the 6 exhaust pipe supports and exhaust tailpipe assembly.
      GTY819185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
