Installation [01/2017 - ]: Procedure

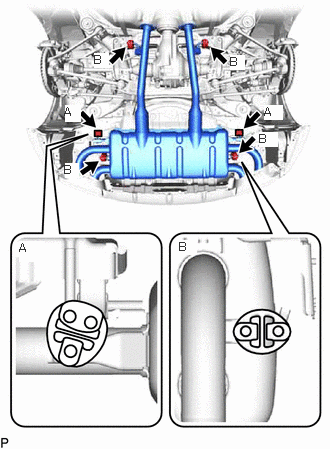

1. Install the 6 exhaust pipe supports to the exhaust tailpipe assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

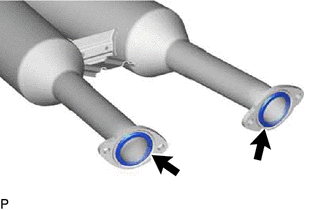

1. Install 2 new gaskets to the front exhaust pipe assembly of the rear side.
   NOTE:

   Do not reuse the gasket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install 2 new gaskets to the exhaust manifold assembly RH and exhaust manifold sassembly LH.
   NOTE:

   Do not reuse the gasket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Install the front exhaust pipe assembly to the exhaust tailpipe assembly with 4 new nuts and 4 new bolts.

   Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

   NOTE:

   Do not reuse the bolts and nuts.

4. Install the front exhaust pipe assembly to the exhaust manifold assembly RH and exhaust manifold assembly LH with 4 new nuts and 4 new bolts.

   Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

   NOTE:

   Do not reuse the bolts and nuts.

1. Install the rear No. 4 bumper side support RH with the 2 screws, 2 clips and grommet.

1. Install the rear No. 4 bumper side support LH with the 2 screws, 2 clips and grommet.

1. Install the No. 1 differential support protector with the 3 nuts.

   Torque: 8.0 N*m (82 kgf*cm, 6 ft.*lbf)

1. Install the No. 2 differential support protector with the 3 nuts.

   Torque: 8.0 N*m (82 kgf*cm, 6 ft.*lbf)

1. Install the front center floor brace sub-assembly with the 12 bolts.

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

1. Install the front floor cover RH with the 3 clips and grommet.

1. Install the front floor cover LH with the 3 clips and grommet.

1. Install the front fender seal RH with the 6 clips, 4 grommets, nut and bolt.

   Torque: 8.0 N*m (82 kgf*cm, 6 ft.*lbf)

1. Install the front fender seal LH with the 6 clips, 4 grommets, nut and bolt.

   Torque: 8.0 N*m (82 kgf*cm, 6 ft.*lbf)

1. Install the rear floor side member cover RH with the 2 clips, 3 bolts, nut, and screw.

   Torque: 8.0 N*m (82 kgf*cm, 6 ft.*lbf)

1. Install the rear floor side member cover LH with the 2 clips, 3 bolts, nut, and screw.

   Torque: 8.0 N*m (82 kgf*cm, 6 ft.*lbf)

If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.

HINT:

If an exhaust gas leak has been repaired, perform an inspection following the repair.

Refer to INITIALIZATION [01/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 04/2020] , or refer to INITIALIZATION [04/2020 - ]
