Removal [05/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the power switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [05/2023 - ]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [05/2023 - ]

  3. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [05/2023 - ]

  4. REMOVE CONNECTOR COVER

    Refer to PROCEDURE - Step 14

  5. CHECK TERMINAL VOLTAGE

    Refer to PROCEDURE - Step 15

  6. TEMPORARILY INSTALL CONNECTOR COVER

    Refer to PROCEDURE - Step 16

  7. REMOVE INVERTER TERMINAL COVER

    Refer to PROCEDURE - Step 17

  8. DISCONNECT GENERATOR CABLE

    Refer to PROCEDURE - Step 18

  9. DISCONNECT MOTOR CABLE

    Refer to PROCEDURE - Step 19

  10. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [01/2017 - ]

  11. REMOVE EGR VALVE ASSEMBLY

    Refer to REMOVAL [01/2017 - ]

  12. REMOVE INVERTER MOTOR CABLE BRACKET ASSEMBLY

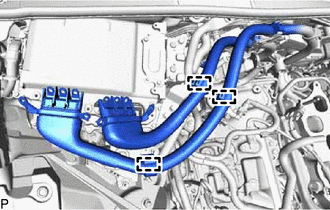

    1. Detach the 3 clamps and disconnect the generator cable and motor cable from the inverter motor cable bracket assembly.
      GTY835202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

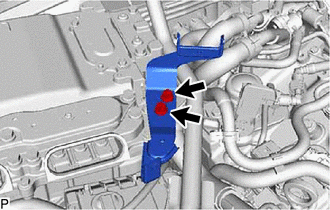

    2. Remove the 2 bolts and inverter motor cable bracket assembly from the inverter assembly.
      GTY811289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FENDER APRON BRACE SUB-ASSEMBLY RH
    1. Detach the clamp and disconnect the hose from the fender apron brace sub-assembly RH.
      GTY835191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and fender apron brace sub-assembly RH from the body.
  14. REMOVE INLET HEATER WATER HOSE
    1. Slide the 2 clamps and remove the inlet heater water hose from the No. 3 water by-pass pipe and heater pipe.
      GTY811288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE OUTLET HEATER WATER HOSE
    1. Slide the 2 clamps and remove the outlet heater water hose from the No. 2 water by-pass pipe and heater pipe.
  16. REMOVE NO. 1 EGR PIPE
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

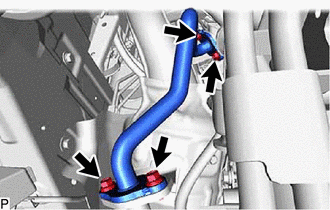

    1. Remove the 2 bolts, 2 nuts and No. 1 EGR pipe from the exhaust manifold assembly RH and EGR cooler assembly.
      GTY812060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 gaskets from the No. 1 EGR pipe and EGR cooler assembly.
  17. REMOVE NO. 4 WATER BY-PASS HOSE

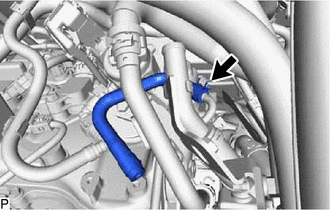

    1. Slide the clamp and remove the No. 4 water by-pass hose from the No. 3 water by-pass pipe.
      GTY835368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 3 WATER BY-PASS PIPE

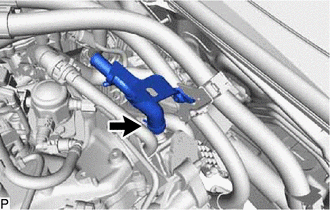

    1. Slide the clamp and remove the No. 3 water by-pass pipe from the EGR cooler assembly.
      GTY812064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. DISCONNECT NO. 12 WATER BY-PASS HOSE

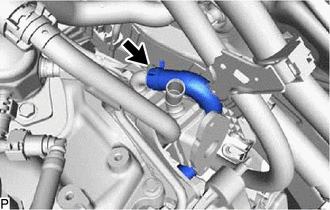

    1. Slide the clamp and disconnect the No. 12 water by-pass hose from the EGR cooler assembly.
      GTY812056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE EGR COOLER ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the bolt, nut and EGR cooler assembly from the cylinder head sub-assembly RH.
      GTY835366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
