Removal [01/2017 - ]: Procedure

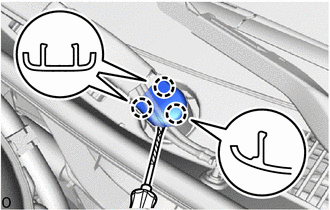

- REMOVE FRONT WIPER ARM HEAD CAP

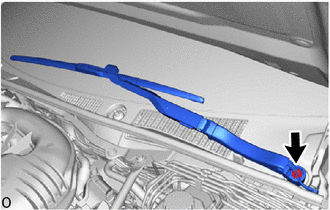

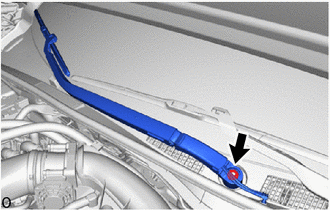

- REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH
- REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH
- REMOVE RADIATOR SUPPORT TO FRAME SEAL RH
Refer to PROCEDURE - Step 2 [01/2017 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]
- REMOVE ENGINE ROOM SIDE COVER LH
Refer to PROCEDURE - Step 1 [01/2017 - 05/2023] , or refer to PROCEDURE - Step 1 [05/2023 - ]
- REMOVE LOWER RADIATOR AIR DEFLECTOR
Refer to PROCEDURE - Step 3 [01/2017 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]
- REMOVE FRONT FENDER REINFORCEMENT TOP SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 2 [01/2017 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]
- REMOVE FRONT FENDER REINFORCEMENT TOP SUB-ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.
- SEPARATE ROOF DRIP SIDE FINISH MOULDING RH
- SEPARATE ROOF DRIP SIDE FINISH MOULDING LH
HINT:
Use the same procedure described for the LH side.
- REMOVE NO. 2 COWL TOP PANEL INSULATOR

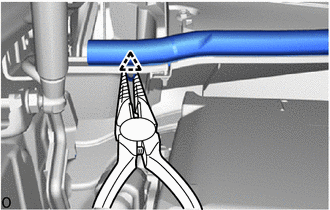

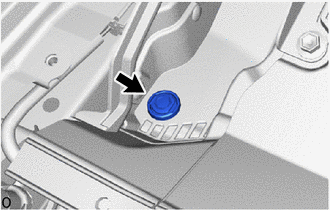

- Using needle-nose pliers with their tips wrapped with protective tape, remove the clip of the hood to cowl top seal.
Protective Tape - Remove the clip.

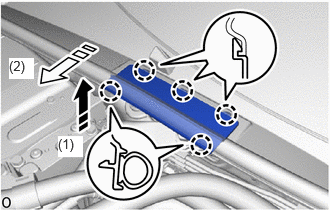

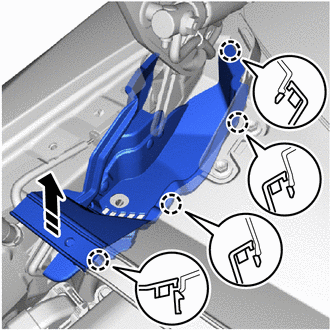

- Pull in the direction of the arrow shown in the illustration to detach the claws and remove the No. 2 cowl top panel insulator.
Remove in this Direction
- Using needle-nose pliers with their tips wrapped with protective tape, remove the clip of the hood to cowl top seal.
- REMOVE NO. 3 COWL TOP PANEL INSULATOR
- Disconnect the 2 washer hoses.

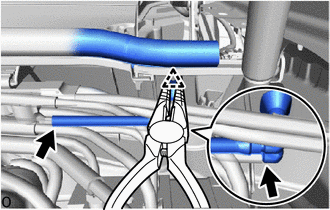

Protective Tape - Using needle-nose pliers with their tips wrapped with protective tape, remove the clip of the hood to cowl top seal.

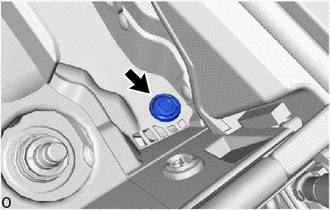

- Remove the clip.

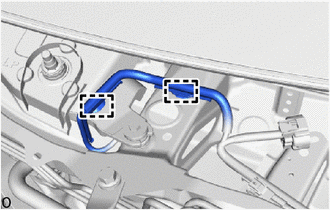

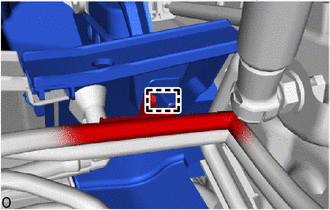

- Detach the clamp.

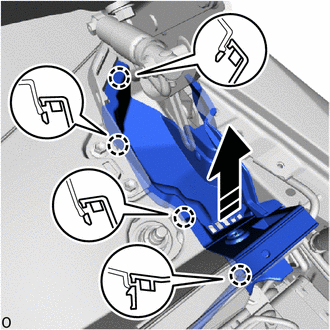

- Pull in the direction of the arrow shown in the illustration to detach the claws and remove the No. 3 cowl top panel insulator.
Remove in this Direction
- Disconnect the 2 washer hoses.

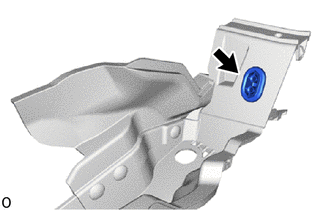

- REMOVE WASHER GROMMET
- REMOVE CENTER COWL TOP VENTILATOR LOUVER
- REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

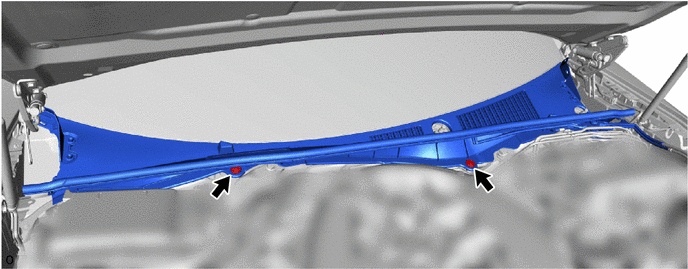

- Remove the 2 clips.
- Apply protective tape to a moulding remover as shown in the illustration.
*a Edge of Protective Tape Protective Tape Standard Dimension

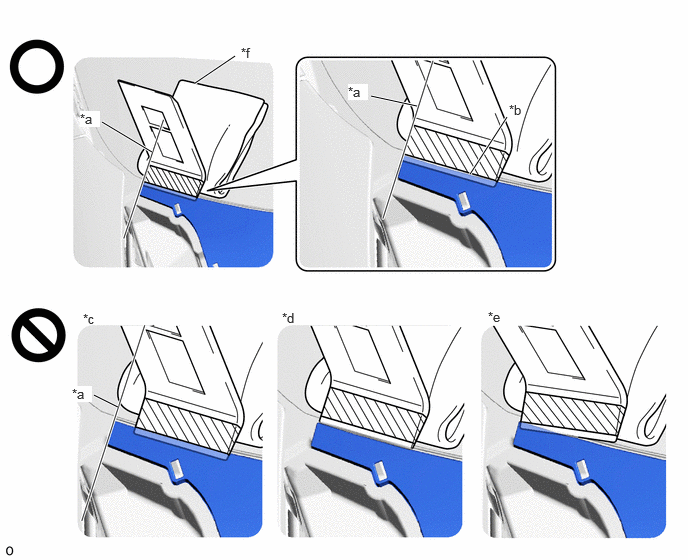

Area Dimension A 4.0 mm (0.157 in.) - Insert the moulding remover at the starting position until the edge of the protective tape is aligned with the cowl top ventilator louver sub-assembly as shown in the illustration.
*a Starting Position:
Side of Cowl Top Ventilator Louver Sub-assembly and Moulding Remover Aligned*b Inserted to Edge of Protective Tape *c Not Inserted at Starting Position *d Not Inserted to Edge of Protective Tape *e Not Inserted Straight *f Piece of Cloth or Equivalent Protective Tape - - NOTE:- To prevent damage to the windshield glass, set a piece of cloth between the moulding remover and windshield glass.
- Make sure to insert the moulding remover until the edge of protective tape is aligned with the cowl top ventilator louver sub-assembly, otherwise the cowl top ventilator louver sub-assembly may be deformed or damaged.

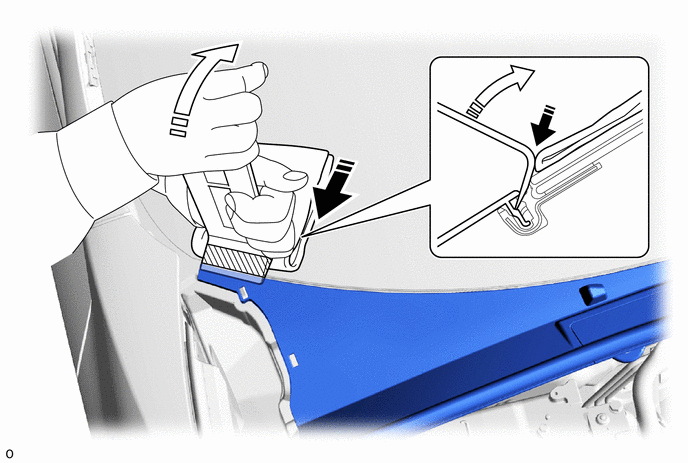

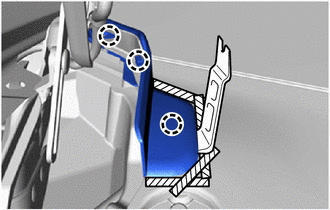

- While pushing the moulding remover in the direction indicated by the arrow (A), push the moulding remover in the direction indicated by the arrow (B) to disengage the cowl top ventilator louver sub-assembly.
Push in this Direction (A) Push in this Direction (B) NOTE:- Make sure to repeat this procedure to disengage the entire cowl top ventilator louver sub-assembly.
- Make sure to perform this procedure while pushing the moulding remover in the direction indicated by the arrow (A), otherwise the cowl top ventilator louver sub-assembly may be deformed or damaged.

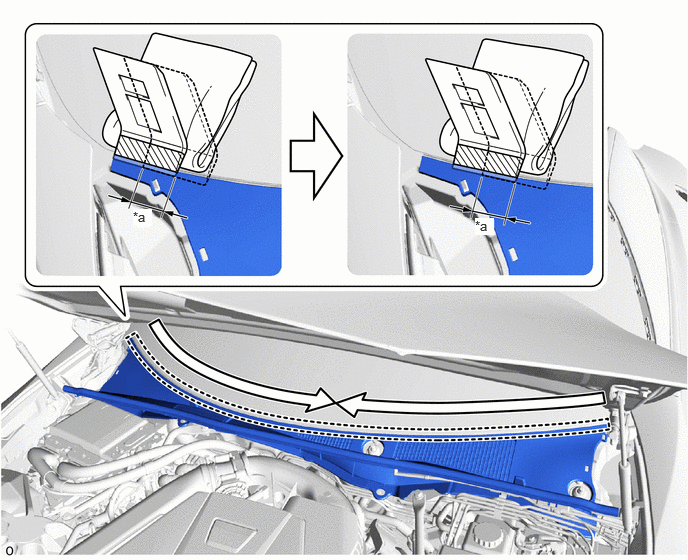

- Using the moulding remover, repeatedly pry up the cowl top ventilator louver sub-assembly while gradually moving the moulding remover half of its width laterally toward the center of the vehicle and then repeat the procedure from the other side of the vehicle as shown in the illustration to disengage the cowl top ventilator louver sub-assembly from the windshield glass.
*a Half Width of Moulding Remover - - Order of Removal - - NOTE:- Make sure to move the moulding remover only half of its width laterally after prying up the cowl top ventilator louver sub-assembly, otherwise the cowl top ventilator louver sub-assembly may be damaged or deformed.
- Make sure not to lift up or pull the cowl top ventilator louver sub-assembly by hand before it is completely disengaged, otherwise it may be deformed or damaged.

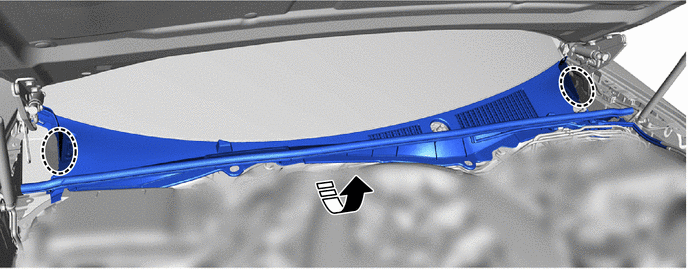

- Pull up and turn the front side of the cowl top ventilator louver sub-assembly to remove it.

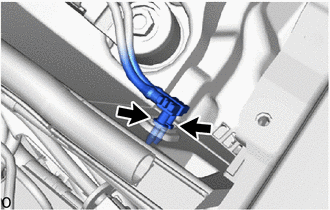

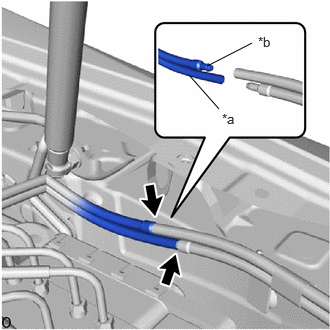

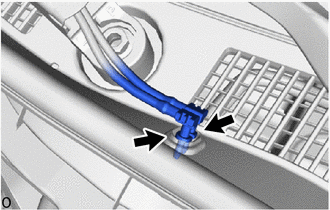

Remove in this Direction Place Hands Here - Disconnect the 2 washer hoses as shown in the illustration.
*a Main Nozzle Side *b Sub Nozzle Side NOTE:Make sure to disconnect the washer hose as shown in the illustration to prevent improper installation during reinstallation.
- Remove the 2 clips.

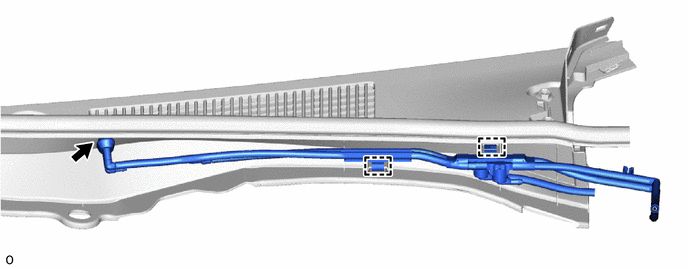

- REMOVE WASHER HOSE

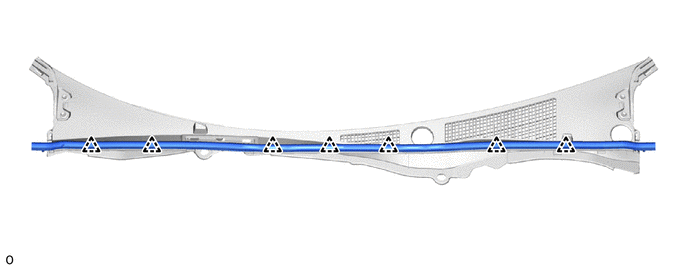

- REMOVE HOOD TO COWL TOP SEAL

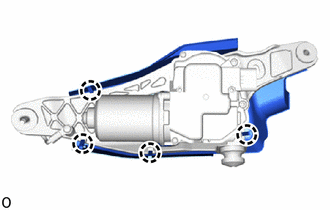

- REMOVE AND INSTALL FRONT WIPER MOTOR COVER

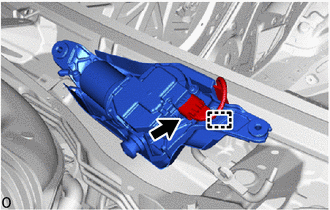

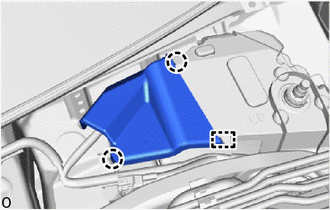

- Detach the claws and guides and remove the front wiper motor cover.

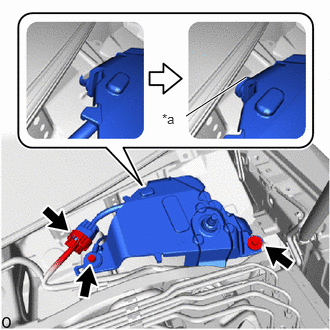

- REMOVE FRONT WIPER MOTOR AND BRACKET ASSEMBLY

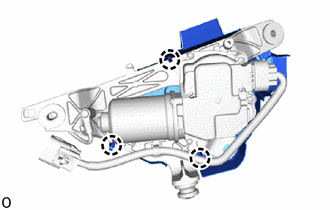

- REMOVE NO. 1 WINDSHIELD WIPER SHAFT COVER

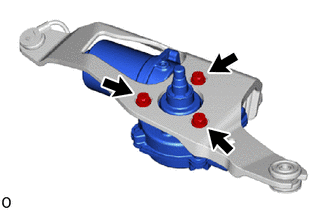

- REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

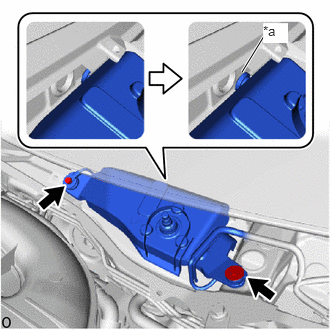

- REMOVE NO. 2 FRONT WIPER MOTOR AND BRACKET ASSEMBLY
- REMOVE NO. 2 WINDSHIELD WIPER SHAFT COVER

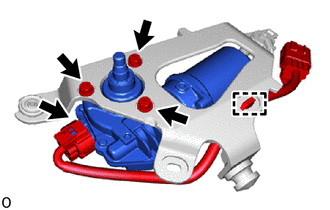

- REMOVE NO. 2 WINDSHIELD WIPER MOTOR ASSEMBLY
