Components [01/2017 - 06/2019]

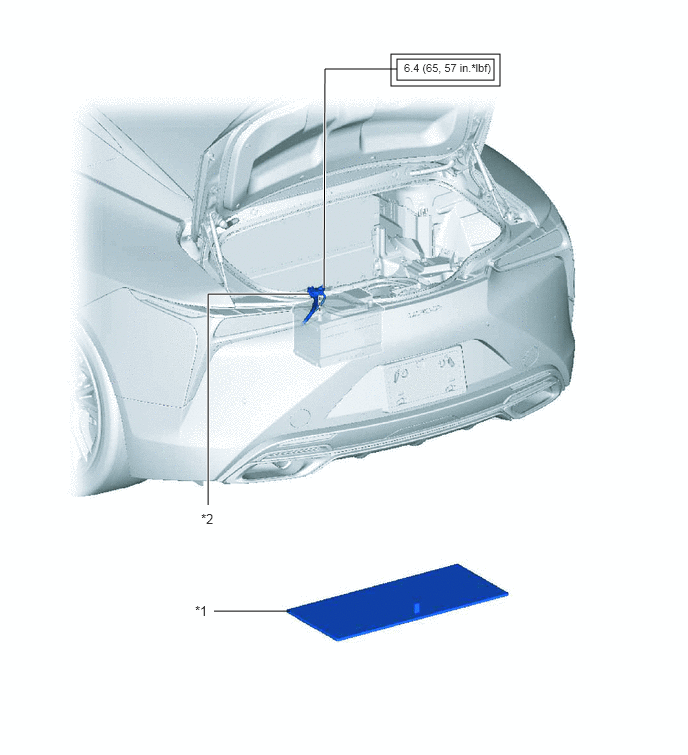

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications [01/2017 - 06/2019] (1 Of 8)
| *1 | NO. 2 DECK BOARD | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | - | - |

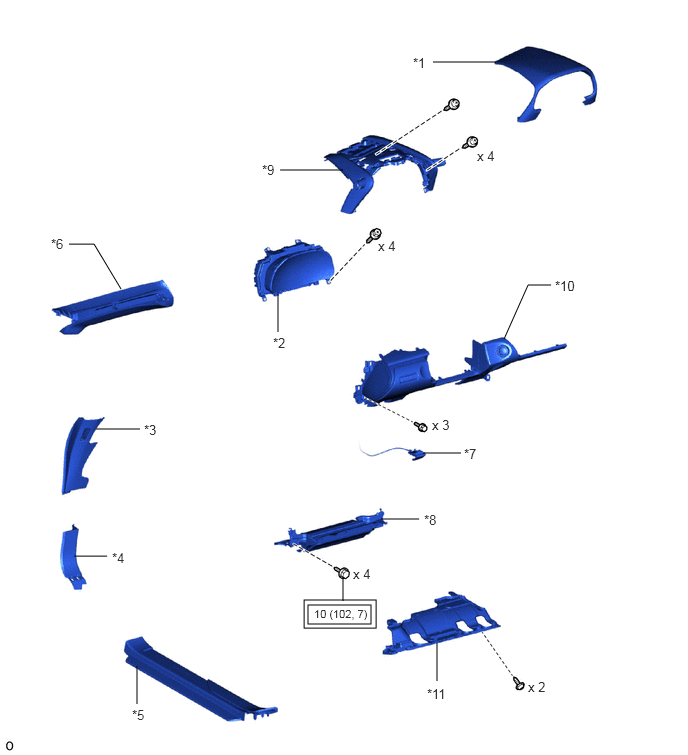

Fig 2: Instrument Panel Safety Pad Replacement Components With Torque Specifications [01/2017 - 06/2019] (2 Of 8)
| *1 | CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL | *2 | COMBINATION METER ASSEMBLY |
| *3 | FRONT DOOR NO. 2 OPENING TRIM COVER LH | *4 | FRONT DOOR OPENING TRIM COVER LH |
| *5 | FRONT DOOR SCUFF PLATE LH | *6 | FRONT PILLAR GARNISH LH |
| *7 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | *8 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY |
| *9 | METER HOOD SUB-ASSEMBLY | *10 | NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY |
| *11 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | - | - |

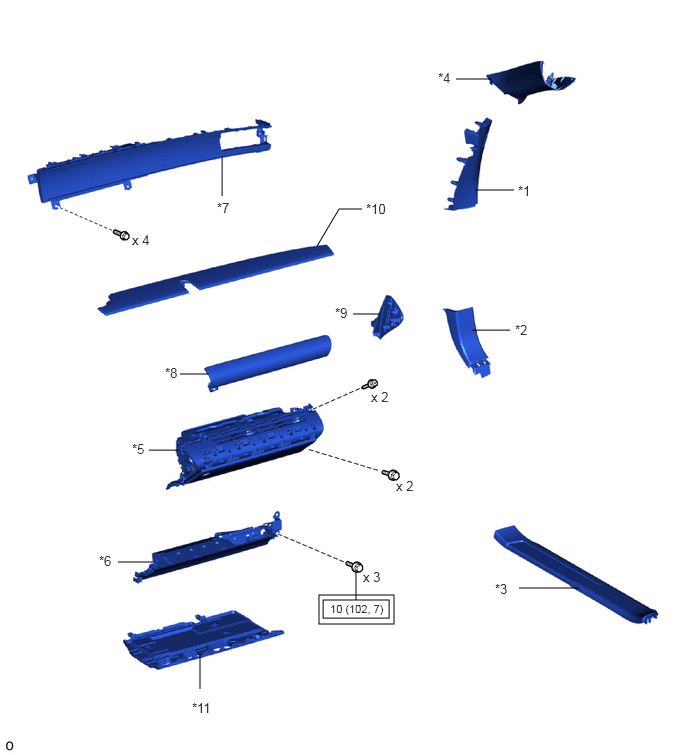

Fig 3: Instrument Panel Safety Pad Replacement Components With Torque Specifications [01/2017 - 06/2019] (3 Of 8)
| *1 | FRONT DOOR NO. 2 OPENING TRIM COVER RH | *2 | FRONT DOOR OPENING TRIM COVER RH |
| *3 | FRONT DOOR SCUFF PLATE RH | *4 | FRONT PILLAR GARNISH RH |
| *5 | GLOVE COMPARTMENT DOOR ASSEMBLY | *6 | LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY |
| *7 | MULTI-DISPLAY | *8 | NO. 1 GLOVE COMPARTMENT PANEL |
| *9 | NO. 2 GLOVE COMPARTMENT PANEL | *10 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY |
| *11 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | - | - |

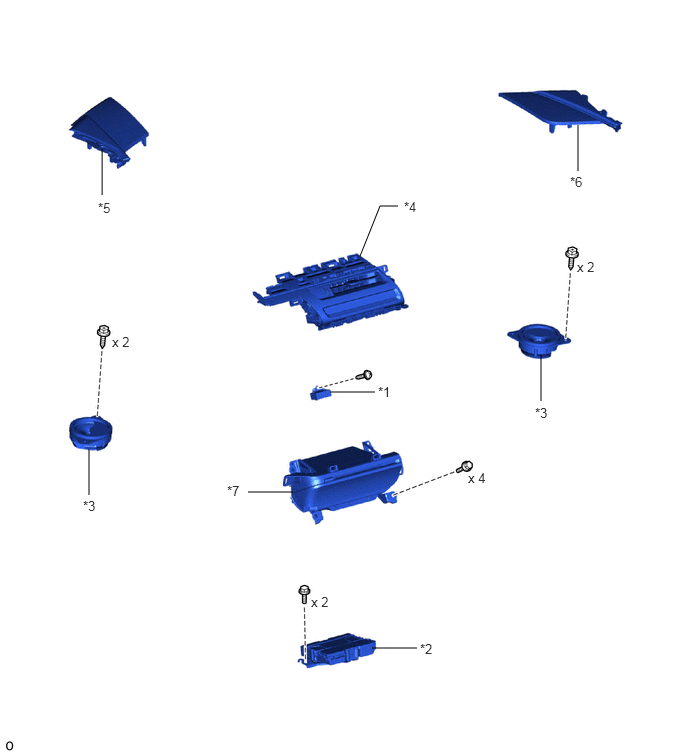

| *1 | ANTENNA DIVIDER | *2 | DCM (TELEPHONE TRANSCEIVER) |
| *3 | FRONT NO. 1 SPEAKER ASSEMBLY | *4 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *5 | NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY | *6 | NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY |
| *7 | RADIO RECEIVER ASSEMBLY WITH BRACKET | - | - |

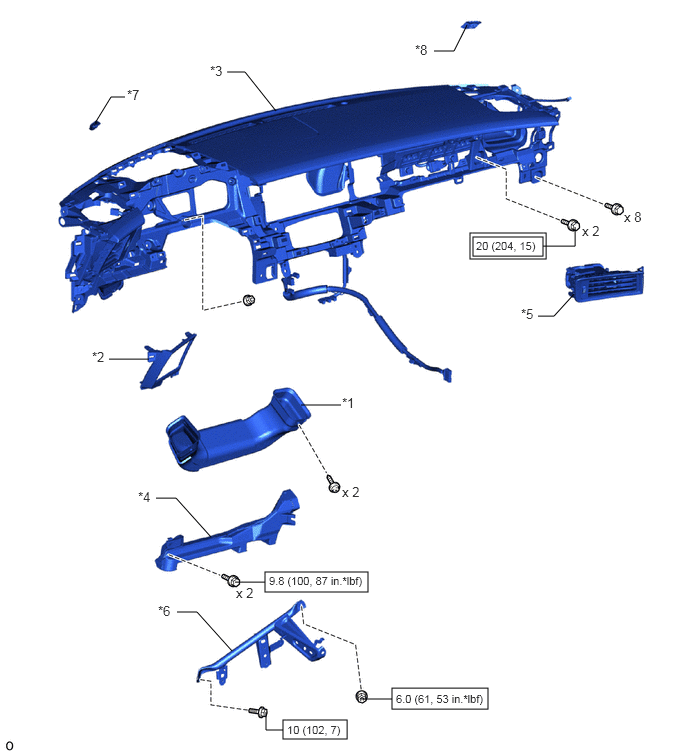

Fig 5: Instrument Panel Safety Pad Replacement Components With Torque Specifications [01/2017 - 06/2019] (5 Of 8)
| *1 | HEATER TO REGISTER CENTER SUB DUCT | *2 | INSTRUMENT PANEL REGISTER BEZEL |
| *3 | INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | *4 | NO. 2 AIR DUCT |
| *5 | NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY | *6 | NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY |
| *7 | NO. 3 SIDE DEFROSTER NOZZLE DUCT | *8 | NO. 4 SIDE DEFROSTER NOZZLE DUCT |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

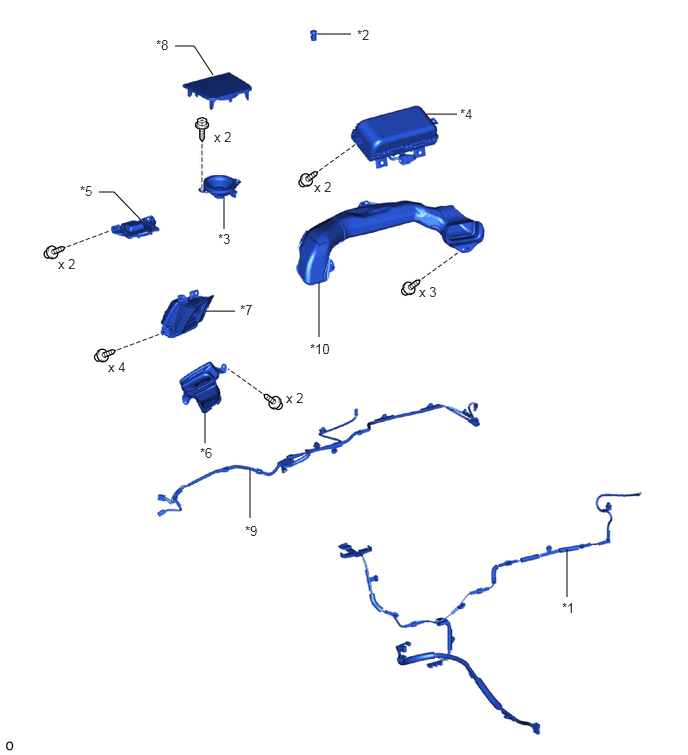

| *1 | ANTENNA CORD SUB-ASSEMBLY | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY | *4 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY |
| *5 | NAVIGATION ANTENNA ASSEMBLY WITH BRACKET | *6 | NO. 1 HEATER TO REGISTER DUCT |
| *7 | NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY | *8 | NO. 1 SPEAKER OPENING COVER ASSEMBLY |
| *9 | NO. 2 INSTRUMENT PANEL WIRE | *10 | NO. 3 HEATER TO REGISTER DUCT |

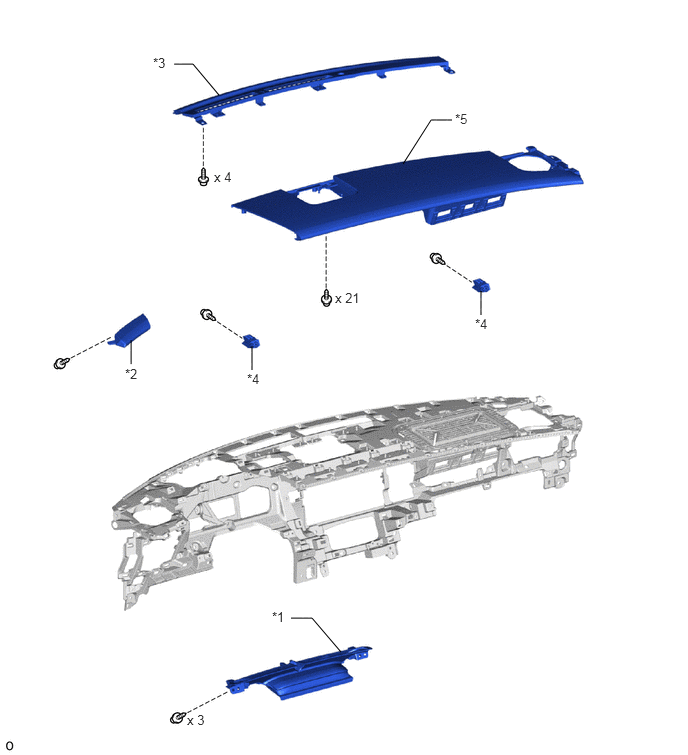

| *1 | DEFROSTER NOZZLE ASSEMBLY | *2 | INSTRUMENT PANEL SUB-ASSEMBLY MAIN |
| *3 | NO. 1 DEFROSTER NOZZLE GARNISH | *4 | NO. 1 INSTRUMENT PANEL PIN |
| *5 | UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY | - | - |

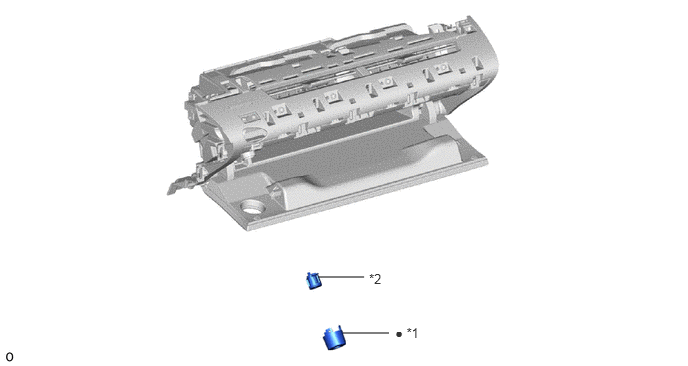

| *1 | GLOVE COMPARTMENT DOOR LOCK COVER | *2 | GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY |
| • | Non-reusable part | - | - |
