Removal [07/2020 - 05/2023]: Procedure

  1. REMOVE WINDSHIELD OUTSIDE MOULDING LH
    1. Apply protective tape around the windshield outside moulding LH.

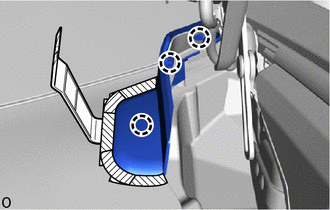

      GTY951963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using moulding remover B, detach the claw.
    3. Pull in the direction of the arrow shown in the illustration to detach the claw and remove the windshield outside moulding LH.

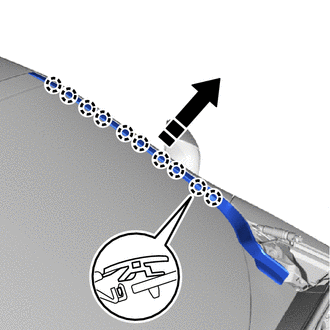

      GTY952533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP
    1. Detach the claw and remove the 5 No. 1 windshield outside moulding clips.

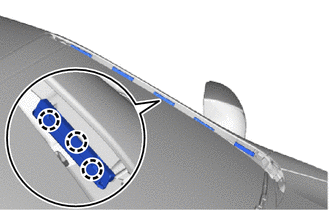

      GTY953836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If removed, windshield outside moulding LH replace the No. 1 windshield outside moulding clip with a new part.
