Removal [07/2020 - ]: Procedure

  1. REMOVE REAR WHEEL HOUSE FRONT PLATE LH

    See step  1

  2. REMOVE REAR ROCKER PANEL MOULDING END COVER LH
    1. Detach the claw and remove the rear rocker panel moulding end cover LH.
      GTY800109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for both rear rocker panel moulding end covers LH.

  3. REMOVE BODY ROCKER PANEL MOULDING ASSEMBLY LH
    1. Apply protective tape around the body rocker panel moulding assembly LH.
      GTY816484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Turn the steering wheel to the left to provide space for the screw to be removed.
      GTY780037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 screws.

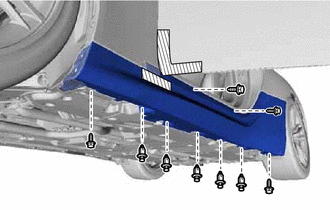

    4. Remove the 4 screws and 5 clips.
      GTY953100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 screws.
      GTY779734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

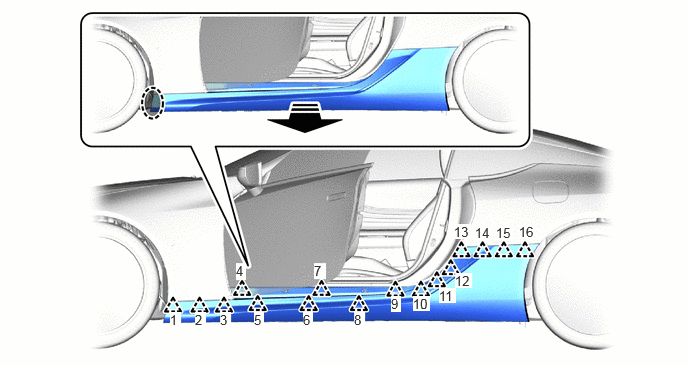

    6. Place your hand at the position shown in the illustration and while pulling toward the outside of the vehicle, detach the clip and remove the body rocker panel moulding assembly LH in the order shown in the illustration.
      Fig 1: Body Rocker Panel Moulding Assembly LH Removal Sequence
      GTY953987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction
