Removal [05/2023 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [05/2023 - ]

  2. REMOVE FRONT TELEVISION CAMERA ASSEMBLY

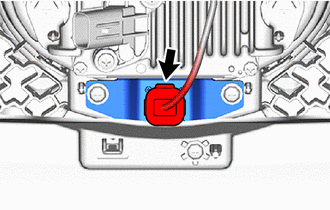

    1. Disconnect the connector.
      GTY1242598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

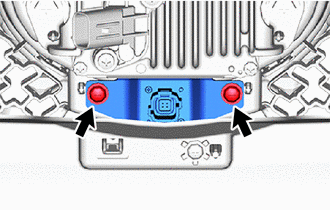

    2. Remove the 2 screws and front television camera assembly.
      GTY1242599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
