Airbag System (Except Hybrid) - Diagnostic Codes (2 Of 3)
>>
AIRBAG SYSTEM (for Gasoline Model)
>>
DTC B1800: Short in D Squib Circuit; DTC B1801: Open in D Squib Circuit; DTC B1802: Short in D Squib Circuit (to Ground); DTC B1803: Short in D Squib Circuit (to +B) [06/2018 - ]
>>
Wiring Diagram

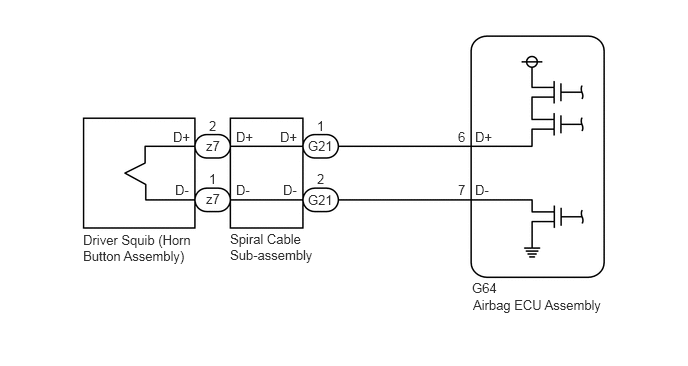

DTC B1800: Short in D Squib Circuit; DTC B1801: Open in D Squib Circuit; DTC B1802: Short in D Squib Circuit (to Ground); DTC B1803: Short in D Squib Circuit (to +B) [06/2018 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
