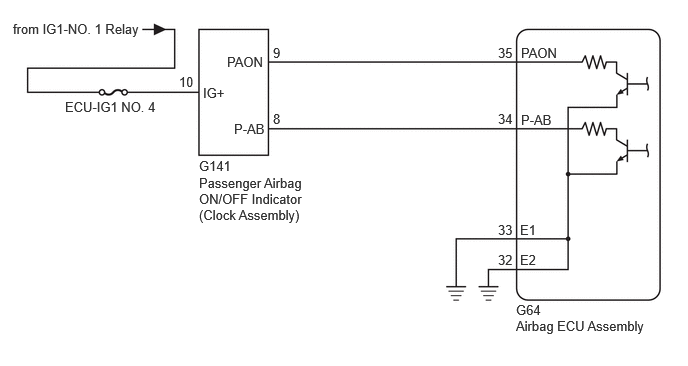

DTC B1660: P Seat Airbag Active Mode Indicator [08/2021 - ]: Wiring Diagram

GTY1085819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
